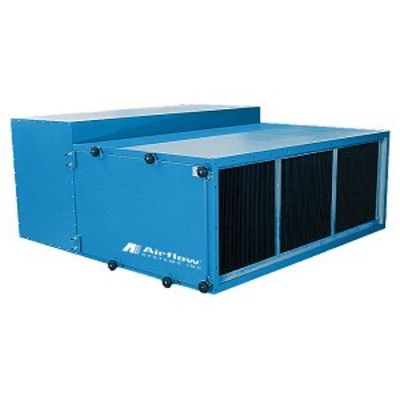

Lev-Co - Model F360 - 9000 CFM -10-004 -Ducted Air Cleaner

High-efficiency multi-stage filtration . This model features a flow rate of 9000 CFM .

• Largest filtration, smallest dimensions
• Multiple configurations allows for installation in congested areas

The F360 ducted Industrial Air Cleaner comes standard with (3) 4” deep 30% pleated pre-filter, (3) 65% bag filter, 96ft² of media each, and a 10 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

The unit can be upgraded with different filter and fan packages to suit a variety of applications and contaminants.

There are multiple filter configurations available featuring washable and/or disposable filters. The unit can be upgraded with different filter and fan packages to suit various applications and contaminants.

Main Options:

• Fan and Motor Upgrades
• Filter Options
• Pressure Gauges
• Variable Frequency Drives

• 16 ga. steel cabinet with powder-coat finish
• Ultra-Seal® filter sealing system
• Side access door to filters
• Internal belt drive
• Ball bearing Class II blower with fixed speed pulleys
• 4-way adjustable airfoil blade exhaust grille
• Motor wired to external junction box

• Class II Belt-Drive Blower:Higher static pressure, longer filter life and greater reliability; spark-resistant.
• Non-electrostatic Operation:High reliability, low maintenance.
• Ultra-Seal® Filter Mounting:Eliminates contaminant bypass of filters.
• High-Efficiency Filter Media:Provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter changes easily without tools.
• Prewired to Junction Box:For fast, easy installation.

Top 5 contaminants/processes/applications:

• Oil Mist
• Wood Dust
• Oil Smoke
• Plastic Fumes
• Cannabis Dust

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

F360
9000 cfm industrial air cleaner with (3) 4 deep, 30% pleated prefilters, (3) 65% bag filters, 120 sq.ft. of media each, and a 10 HP TEFC motor. 208-230/460/575/3/60Hz (26/13 amps). 86 dBA.

F360-VERTICAL
9000 cfm industrial air cleaner with (3) 4 deep, 30% pleated prefilters, (3) 65% bag filters, 120 sq.ft. of media each, and a 10 HP TEFC motor. Please specify voltage when ordering. Vertical configuration includes seam welded source capture plenum, 24 floor stand and vertical door arrangement.

MSF360-CV
9000 cfm industrial air cleaner with (3) 4 deep, 30% pleated prefilters, (3) 65% bag filters, 120 sq.ft. of media each, and a 10 HP TEFC motor. 208-230/460/575/3/60Hz (26/13 amps). 86 dBA.

MSF360-VERTICAL-CV
9000 cfm industrial air cleaner with (3) 4 deep, 30% pleated prefilters, (3) 65% bag filters, 120 sq.ft. of media each, and a 10 HP TEFC motor. Please specify voltage when ordering. Vertical configuration includes seam welded source capture plenum, 24 floor stand and vertical door arrangement.

• Filter Options (when ordering with main unit)
• Filter Media Options
• Replacement Filters
• Sound Attenuation
• Preventative Maintenance Pressure Gauges (when ordering main unit)
• Variable Frequency Drives
