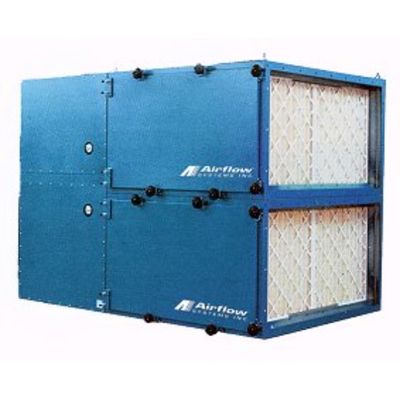

Lev-Co - Model F480 - 12,000 CFM -10-005 -Ducted Air Cleaner

High-efficiency multi-stage filtration . This model features a flow rate of 12000 CFM .

• Largest filtration, smallest dimensions
• Multiple configurations makes installation possible in congested/tight areas

The F480 ducted Industrial Air Cleaner comes standard with (4 pcs) 4”deep 30%pleated pre-filter, (4 pcs) 65%bag filter, 96ft² of media each, and a 15 HP TEFC motor 208-230/460/575/3/60Hz. The fan is included inside the unit.

These units are complete, packaged air filter units that can easily be attached to ductwork and pickup hoses for at-the-source collection of pollutants.

There are multiple filter configurations available featuring washable and/or disposable filters. The filter unit can be upgraded to have different filter and fan packages to suit various applications and contaminants.

Main Options:

• Fan and Motor Upgrades
• Filter Options
• Pressure Gauges
• Variable Frequency Drives
• Sound Attenuation

• 16 ga. steel cabinet with powder-coat finish
• Ultra-Seal® filter sealing system
• Side access door to filters
• Internal belt drive
• Ball bearing Class II blower with fixed speed pulleys
• 4-way adjustable airfoil blade exhaust grille and
• Motor wired to external junction box

• Class II Belt-Drive Blower:Higher static pressure, longer filter life and greater reliability; spark-resistant.
• Non-electrostatic Operation:High reliability, low maintenance.
• Ultra-Seal® Filter Mounting:Eliminates contaminant bypass of filters.
• High-Efficiency Filter Media:Provides maximum effectiveness; low air-to-cloth ratio extends cycles between filter changes; filter chugs easily without tools.
• Prewired to Junction Box:For fast, easy installation.

Top 5 contaminants/processes/applications:

• Oil Mist
• Wood Dust
• Oil Smoke
• Plastic Fumes
• Cannabis Dust

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

F480
12,000 cfm industrial air cleaner with (4) 4 deep, 30% pleated prefilters, (4) 65% bag filters, 120 sq.ft. of media each, and a 15 HP TEFC motor. 208-230/460/575/3/60Hz (38/19 amps). 86 dBA.

F480-VERTICAL
12,000 cfm industrial air cleaner with (4) 4 deep, 30% pleated prefilters, (4) 65% bag filters, 120 sq.ft. of media each, and a 15 HP TEFC motor. 208-230/460/575/3/60Hz (38/19 amps). Vertical configuration includes seam welded source capture plenum, 24

MSF480-CV
12,000 cfm industrial air cleaner with (4) 4 deep, 30% pleated prefilters, (4) 65% bag filters, 120 sq.ft. of media each, and a 15 HP TEFC motor. 208-230/460/575/3/60Hz (38/19 amps). 86 dBA.

MSF480-VERTICAL-CV
12,000 cfm industrial air cleaner with (4) 4 deep, 30% pleated prefilters, (4) 65% bag filters, 120 sq.ft. of media each, and a 15 HP TEFC motor. 208-230/460/575/3/60Hz (38/19 amps). Vertical configuration includes seam welded source capture plenum, 24

• Filter Options (when ordering with main unit)
• Filter Media Options
• Replacement Filters
• Sound Attenuation
• Preventative Maintenance Pressure Gauges (when ordering main unit)
• Variable Frequency Drives
