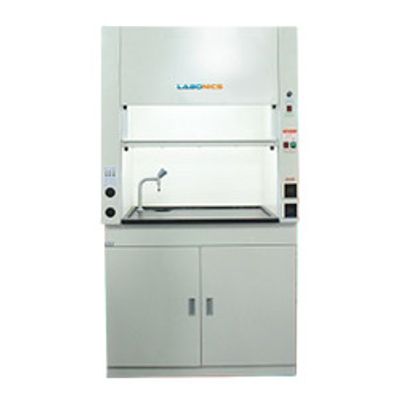

Labo - Model 127DFH -Ducted Fume Hood
Ducted Fume hoods are ventilation units equipped with a base cabinet and a noise level of ≤ 60 dB. Air is drawn from the lab space into the fume hood and the duct rigorously removes toxic gases from the work environment providing an excellent user protection. Thick tempered glass sliding door makes for a safe work environment.
Most popular related searches
ducted fume hood
fume hood
workplace safety
axial fan
exhaust duct
ventilation unit
fume control
toxic gas
mobile laboratory
air regulations
- Overall dimension (L × W × H): 1500 × 650 × 1900 mm
- Working area dimension (L × W × H): 1300 × 600 × 750 mm
- Surface wind speed: 0.3 to 0.6 m/s
- Light: LED lamp
- Exhaust duct diameter: 250 mm
- Sliding door thickness: 5 mm
- PP cup diameter: 100 mm
- Worktop thickness: 12.7 mm
- Inner lining board thickness: 5 mm
- Shell thickness: 1.2 mm
- Axial fan flow: 110 W
- Noise level: ≤ 60dB
- Weight: 130 kgs
- Cold rolled steel made structure
- Physiochemical board with anti-corrosive, anti-acid properties
- Tempered glass sliding door
- Anti-corrosive, anti-acid compact panel
- Two 10A multifunctional anti-splash sockets
- 110 W axial flow fan with air velocity regulator
- Main body covered with greyish epoxy –polyester paint
- Desk mount low spout single faucet
Used in research & development processes, powder containment (e.g. pharmaceutical compounding) chemical fume control, mobile laboratories and field research, light acid etching, etc.
