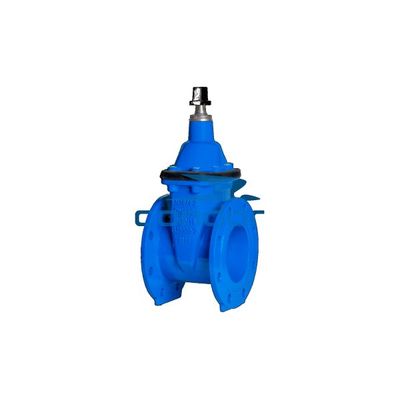

CONDOR - Model F-4 -Ductile Iron Gate Valve
Drinking water supplies, fire fighting systems, irrigation and waste water treatment.
Most popular related searches
fire fighting system
wastewater treatment
drinking water supply
EN standard
fire fighting
water treatment
drinking water
water supply
gate valve
spindle
- Manufacturing range: DN50 to DN600
- Designed according to the EN1074-2 standard.
- Flange size according to the EN-1092-2 standard.
- Body, plug and gate comply with the mechanical requirements of the UNE-EN 1563 standard.
- Gate coating and rubber joints made in EPDM in compliance with the EN681-1 standard.
- AISI420 stainless steel spindle in accordance with the UNE-EN 10088-1:2006 standard.
- Stationary spindle.
- Clockwise closure, anti-clockwise available to order.
- Null check zones.
- Low pressure loss.
- Body, plug and hand wheel: epoxy polyamide coating (average thickness 250μ, RAL 5017) in accordance with the UNE-EN-14901 standard.
- Service conditions: 0º C<T<70º C
-
Testing set and carried out in accordance with EN 1074-2 and EN 12266-1.
-
Connection length in accordance with EN 558-2008 and series F4.
