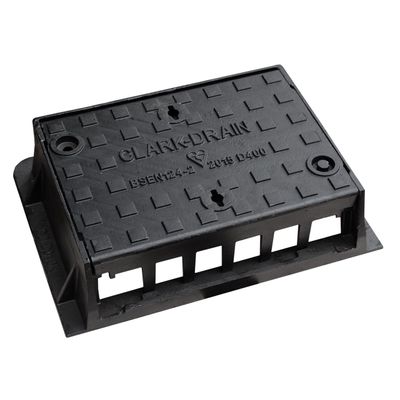

Clark-DrainModel CD D010K -Ductile Iron Kerb Gullies

SHARE

Half batter profile kerb gully. Bsi kitemark certified to bs en 124-2:2015. Integral lifting key holes. Integral turn-catch lock. Road retaining bar helps form the road edge during installation. Wide unobstructed clear opening facilitates maintenance access to the sewer system.

Most popular related searches
  • Applications Estate Roads, Highway, Kerbside
  • Accreditation BS EN124-2:2015
  • Locking Turn catch locking
  • Loading D400
  • Cover Solid Top (Hinged)
  • Lifting Keys CD 552, CD 552L
  • Material Ductile Iron
  • Internal Dimensions 500 (L) x 338 (W)
  • External Dimensions 612 (L) x 450 (W) x 150 (D)
  • Clear Opening 500 x 338
  • Water Way Area 300cm2
