Zhejiang Parkson Water Industry Equipment Stock Co., Ltd.

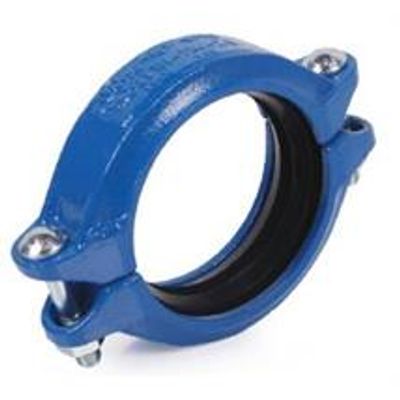

Pass - Model 705 -Ductile Iron Low Pressure Flexible Coupling
The Model 705 is designed for connection of grooved low pressure pipe systems.
Most popular related searches
pressure pipe system
ASTM A536
gasket sealing
pipe system
flexible coupling
pressure pipe
gaskets
acid water
acidic water
Sizes-Inches/DN & Rated working pressure:
- 3/4"to 4"(DN20 to DN100), 600psi (42bar)
- 5" to 12"(DN125 to DN300), 300psi (21bar)
- For Sch40S cut groove only
MODEL 705 MATERIAL SPECIFICATIONS
Housings:
- Ductile Iron to ASTM A536
- Surface Finish:
- Antirust paint red or blue
- Hot dip zinc galvanized
- Epoxy power
- Dacromet
- Teflon ( PTFE)
- RilsanPAll
Rubber Gaskets:
The gasket seals is C-shaped, made of standard gasket EPDM(ethylene propylene diene monomer) for cold water, hot water, rare acid, oil-free air and multiple chemical product (-50~150°C). It is not suitable for medium like petroleum.
Bolts & Nuts:
- Round-head, elliptoid -neck, carriage bolts, type carbon iron covered
- with zinc or dacromet
- stainless steel nuts ASTM A-193 B-8M
- Silicone bronze heavy duty nuts to ASTM B98 C65100 for option
