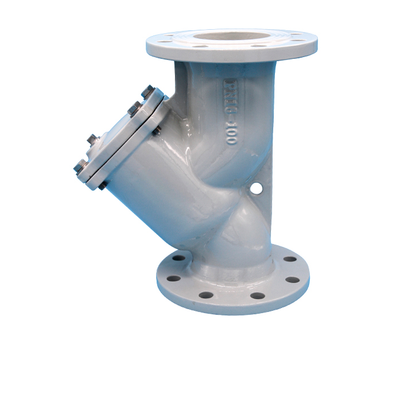

Hiwa - Model CS0007 -Ductile Iron Magnetic Strainers
Both the valve body and the valve cover are made of high-quality cast iron materials to ensure product quality. Full-diameter design is adopted to increase the filtration area (the filtration area is 5~9 times the net area, and the passing area is 2~3 times the diameter area), improve the filtration processing capacity, increase the anti-blocking ability, and extend the cleaning and maintenance cycle.
Most popular related searches
sewage system
magnetic filter
strainer
pressure reducer
corrosion prevention
gaskets
sewage
pressure filtration
pressure filter
- Large flow and small flow resistance coefficient design: Dedicated fluid software optimizes the channel structure, reduces the pressure loss coefficient, and reduces the conveying pressure loss. The increased filtration (net) area, reasonable aperture, and large opening rate ensure the basic filtration needs while reducing the flow resistance of the filter, the pressure and flow requirements of the terminal.
- Low noise design.
- Magnetic accessories can be selected as magnetic filters.
- Good sealing, support different forms of mesh customization services.
- Zero leakage, long life.
- Corrosion-resistant, internal and external epoxy resin spraying, stainless steel internal parts can prevent corrosion and rust in the valve body, can be used in sewage systems, and underground and other harsh environments.
- Size Range: DN50-DN600
- Pressure: PN10, PN16
- Temperature Range: -10? to 120?
- Flange Standard: EN1092-2 PN10/PN16, ISO7005-2
- Main Parts:
- Body/Bonnet: Ductile iron
- Cover Gasket: Rubber
- Screen: Stainless steel
- Fasteners: Galvanized carbon steel, Stainless steel
