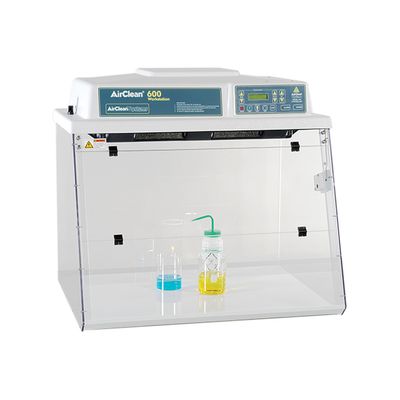

AirClean - Model AC600 Series -Ductless Chemical Workstation

• AirSafe® automatic safety controller
• Integral base with deep spill lip
• No ductwork required
• No installation required - plugs directly into a standard 110V or 220V electrical outlet
• Clear polycarbonate shell for 360° visibility
• Available in standard height or tall version
• Extremely quiet operation < 49dBA
• Constant monitoring of fume hood face velocity with variable airflow control to user preset value
• Gas phase bonded carbon filtration
• Lab event timer

• Brushless, sparkless blower is post-filter
• Deep base effectively contains accidental spills
• Electronic gas detection for real-time gas phase filter monitoring
• Filter and electronics are located above the workspace, eliminating the chance of a chemical spill entering these sensitive areas
• Filter safety lockout to ensure correct filter replacement
• Low airflow alarm warns the user both visually and audibly
• Real time monitoring of installed filtration bed
• Shipped fully assembled
• Tested to UL 61010-1,CSA C22.2 No. 61010-1, and EN 61326-1

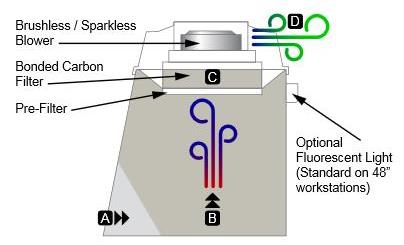

A Room air flows away from the operator and enters the enclosure in a horizontal pattern.
B Room air mixes with both lighter and heavier gases.
C Contaminated air is directed through the filtration bed.
D Clean air is recirculated into the room.
