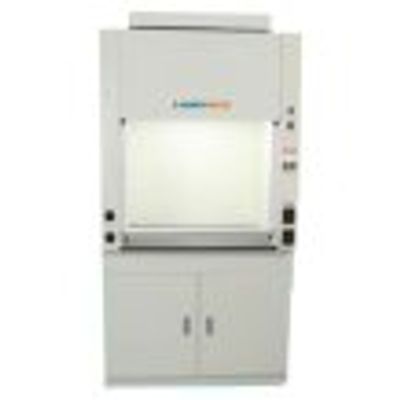

Labo - Model 135DFH -Ductless Fume Hood
Ductless Fume Hoods are ventilation units equipped with a base cabinet and a noise level of ≤ 60 dB. The filters capture fumes from circulating air, which is then vented into the room. They use Carbon and Hepa filter, filtering 99.99% toxins thus providing an excellent product, environmental and user protection. They are easier to install since they do not require ventilation ducts.
Most popular related searches
ductless fume hood
fume hood
HEPA filter
ventilation unit
fume control
ventilation duct
mobile laboratory
chemical control
powder processing
carbon filter
- Overall dimension (L × W × H): 1000 × 650 × 1900 mm
- Working area dimension (L × W × H): 800 × 600 × 750 mm
- Maximum opening: 530 mm
- Exhaust air volume: 800 m3 /h
- Filtering level: 0.9999
- Work surface height: 800 mm
- LED lamp: 10 W
- Sliding door thickness: 5 mm
- Worktop thickness: 12.7 mm
- Main body thickness: 1.2 mm
- Inner lining board thickness: 5 mm
- Noise level: ≤ 60dB
- Power: AC 220 V ± 10%, 50 Hz AC 220 V ± 10%, 60 Hz
- Weight: 130 kgs
- Cold rolled steel made structure
- Physiochemical board with anti-corrosive, anti-acid properties
- Tempered glass sliding door
- Anti-corrosive, anti-acid compact panel
- Galvanized steel made main body covered with greyish epoxy –polyester paint
- Two 10A multifunctional anti-splash sockets
Used in research & development processes, powder containment (e.g. pharmaceutical compounding) chemical fume control, mobile laboratories and field research, light acid etching, etc.
