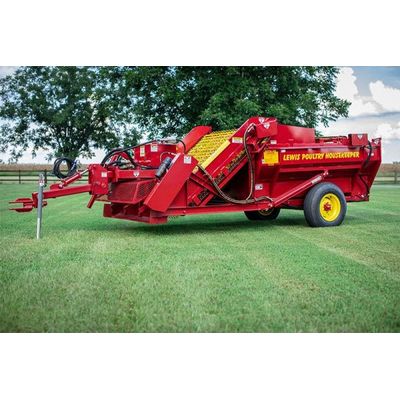

Lewis Brothers - Model 1 -Dump-Body Housekeeper
Fast, simple operation when stockpiling is needed. The DB-1 has the same capacity and horsepower requirements as the #2 and makes cleanout faster with the dumping feature. Total cleanout may also be accomplished by adding the optional solid bars to the conveyor.
Most popular related searches
- Working Height: 64″
- Overall Length: 19′
- Overall Width: 84″
- Weight: 4450 lbs (empty)
- Throat: 69″
- Capacity: 112 cu. ft.
- Tires: 9.5L x 16
- Required PTO Horsepower: 40 HP
- Head Width: 79″
- Hydraulic Oil: AW-68
- PTO Hydraulic Pump: 16 gpm
- Oil Reservoir Capacity: 20 gal
Optional Equipment:
Solid Bar Kit
Solid bars are available on model’s #2, #3, #3.5, #4, #DB-1 & #DB-4. By adding the solid bars, the operator can convert from de-caking to total cleanout in a short time.
- Working Height: 69
- Overall Length: 22.5′
- Overall Width: 84″
- Weight: 6800lbs (empty)
- Throat: 69″
- Capacity: 165 cu. ft.
- Tires: 12.5L x 16
- Tires (Tandem Optional): 9.5L x 15
- Required PTO Horsepower: 60 HP
- Hydraulic Oil: AW-68
- PTO Hydraulic Pump: 22 gpm
- Oil Reservoir Capacity: 30 gal
Optional Equipment:
Tandem Axle
The tandem axle is available on model’s #3.5, #4, #5, #5LP, #DB-2, #DB-2LP, #DB4 and the Spreader Body. The tandem axle provides a wider base and can absorb rough terrain.
