Duperon FlexRake - Model FPFS -Full Penetration Fine Screen

Description

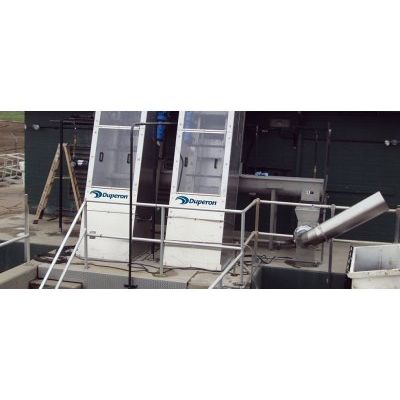

Duperon® FlexRake® FPFS: Full Penetration Fine Screen

A front-clean, front-return, mechanically-cleaned bar screen technology.

Utilizes stainless-steel tear-shaped bars with 1/4 inch, 3/8 inch, or 1/2 inch openings.

Features & Benefits

Duperon® FlexRake® FPFS: Features & Benefits

Low Maintenance

With no lower sprocket, FlexRake® technology allows all maintenance to be done from the deck; no jam points underwater to require diving or confined space entry.

Long-Life Durability

Original FlexLinkTM multifunctional link system - with 4.5 lb. stainless steel cast links and an ultimate strength of 60,000 lbs. - provides unmatched durability. Many systems have been operating for more than 20 years.

Full Range Adaptability - Unhampered by Large Debris

Jam EvasionTM technology allows the FlexLinkTM multifunctional link system to lift and pivot around debris. This allows FlexRake® technology to adapt to a wide range of debris variations; from grit and grease to hard hats and sewer plugs. Positive location of the scrapers by the side frame assures continuous engagement.

Energy Efficient

The low horsepower requirements of the Sumitomo drive system ensure low-cost, energy-efficient debris removal.

Efficient Hydrodynamics

Depending upon approach velocities, tear-shaped bars are 20% to 50% more efficient.

High Capture Rate

Unique to the industry, Thru-BarTM scrapers clean 3 sides of the bar as well as cross members.

Cleans to Channel Bottom
Eliminates residual debris buildup at the bottom of the screen; allows full use of channel depth for flow.

Five-Year Warranty
Five-year warranty for wastewater applications - an industry first.

General Specifications

Typical Applications:

Wastewater, combined sewer overflows, and prison applications. Also used in pulp/paper mills, raw water intakes, and other applications where debris is highly variable or difficult to capture.

Unit Width:

2 feet to 10 feet
Single Strand FlexRake® configuration available for channel widths of 18 inches to 24 inches.

Unit Length:

10 feet to 100 feet

Angle of Installation:

10 degrees to 45 degrees

Standard Materials of Construction:

Standard: 304 Stainless Steel
Available in: 316 Stainless Steel

Bar Opening:

¼ inch, 3/8 inch, and ½ inch

Scraper Configuration:

3:1 UHMW-PE staging scraper/stainless steel Thru-Bar™ teeth ratio. Scraper positioned every 21 inches.

Standard Controls Options:

Packages range from simple start/stop to sophisticated automation. Motor overload protection provided. Contact Duperon® for further details and assistance in selecting the perfect package for your site.

Operation Options:

Continuous/Manual
Automatic with timer, float, SCADA, differential/high-level sensing options with I/O as needed
