Duperthal - Model Classic Pro XL - ...

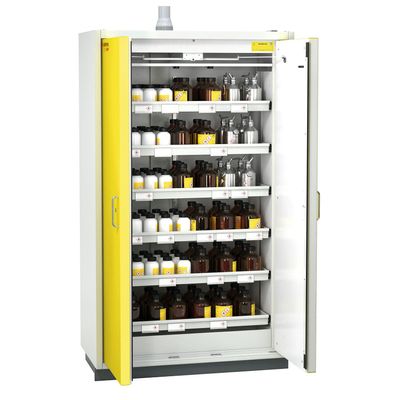

Duperthal - Model Classic Pro XL -Safety Cabinets for Storage

FromDuperthal Sicherheitstechnik GmbH & Co. KG

SHARE

Model size: XL. Interior: 6 Pull-out shelf, 1 bottom tray. Standing surface material: sheet steel, powder-coated. Maximum volume of the largest individual container [l]: 30 - (7.93 - gal). Door design: Wing door. Door technology: Classical. Dimensions (W x D x H) [mm]: 1194 x 612 x 2085, (47.01 x 24.09 x 82.09 - inch).

Most popular related searches

safety storage cabinet

storage cabinet

flammable safety cabinet

Reference no.: 29-201267-053
Product group: safety storage cabinet
Designation - addition: pro
Use/program section: passive storage
Fire resistance (FR): Type 90
Catalogue page: 48
Doors can be opened with minimum effort, design: wing door
Door technology: classical
In case of fire, automatic and blockage-free self-closing via thermocouple: yes
Outer width [mm]: 1194 - (47.01 inch)
Outer depth [mm]: 612 - (24.09 inch)
Outer height [mm]: 2085 - (82.09 inch)
Base height [mm]: 85
Base version: ToeKick
Material outer carcass and door: sheet steel, powder-coated
Gross weight [kg]: 464 - (1022.94 lbs)
Outer carcass colour: light grey RAL 7035
Inner carcass colour: light grey RAL 7035
Door colour: zinc yellow RAL 1018
Base colour: slate grey RAL 7015
Number of sides: 1
Inner width [mm]: 979 - (38.54 inch)
Inner depth [mm]: 469 - (18.46 inch)
Inner height [mm]: 1697 - (66.81 inch)
Material inner carcass: decor panels
Maximum volume of the largest individual container [l]: 30 - (7.93 gal)
Collection volume [l]: 33 - (8.72 gal)
Number of storage shelves: 6
Bottom tray interior: bottom tray
Number of bottom trays: 1
Earthing connection according to TRGS 727 conductively connected to interior fittings: 1
Number of earthing connections: 2
Exhaust air connection included: NW 75/110
Standing surface material: sheet steel, powder-coated
Load-bearing capacity per standing surface with uniformly distributed load [kg]: 60 - (132.28 lbs)
Adjustment height 1 left [mm]: 271 - (10.67 inch)
Adjustment height 2 left [mm]: 255 - (10.04 inch)
Adjustment height 3 [mm]: 255 - (10.04 inch)
Adjustment height 4 left [inch]: 255 - (10.04 inch)
Adjustment height 5 [mm]: 255 - (10.04 inch)
Adjustment height 6 [mm]: 265 - (10.43 inch)
Mark of approval by TÜV: GS mark
Type-tested by recognised test institutes according to: DIN EN 14470-1
TÜV-tested according to: DIN EN 14470-1, EK5/AK4 09-10
further test bases: DIN EN 14727
further test bases: TRGS 510 Annex 3
Added value mark of approval by TÜV: High Quality
Declaration of conformity: CE
