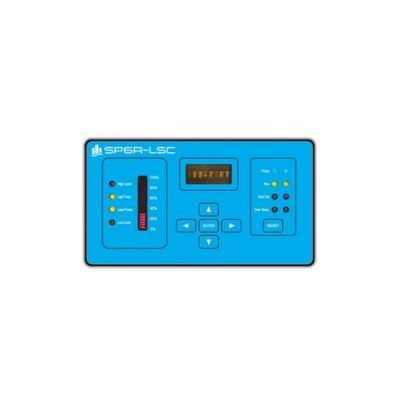

PRIMEX - Model SP6R-LSC -Duplex Microprocessor-Based Controller
The SP6R-LSC is simplicity at its best, incorporating numerous control and monitoring features into one user-friendly unit to monitor levels in wet wells.The easy-to-use microprocessor-based controller monitors the level via a submersible pressure transducer or any other device with a 4-20 mA signal output. The controller provides pump alternation and has a simulation feature with automatic time out. The SP6R-LSC displays:
Most popular related searches
submersible pressure transducer
pump controller
temperature indicator
wet well
water alarm
well level
pressure transducer
level monitoring
automatic pump starting
metering pump
-
Level Set Points
-
Pump Run Time
-
Pump Cycle Count
-
Actual Level
- 4-20 mA level input with configurable zero and span
- Bar graph display of wet well level, configurable to feet, inches, percentage or metric
- Six level set points:Run time meter for each pump
- High water alarm (with relay output)
- Start lag pump (with relay output)
- Start lead pump (with relay output)
- Stop lag pump
- Stop lead pump
- Low level (with relay output)
- Cycle counter for each pump
- Automatic alternation
- Simulation mode with automatic time out
- Lag pump start delay (1-6000 sec.)
- Pump run indication
- Seal fail indication:
- Indication only
- Lock out pump with manual reset
- Run pump as lag only
- Pump over temperature indication (2 modes):Analog input: 0.1% resolution 4-20 mA signal, built-in noise filtering and averaging
- Lock out pump with auto rest
- Lock out pump with manual rest
- Eight character, alpha-numeric, avionics-grade LED for process value display and program parameters
- 6 programmable relay outputs
- On board 24 VDC, 30 mA excitation voltage
- Easy navigation and set up with keypad
- Simulation mode to verify proper relay sequence operation
- Competitively priced
