Roscoe - Model 2101, 2205, 2507 -Duplex Stainless Water Well Casing and Screen
Duplex stainless steel is the appropriate material for specific environments where corrosion is extreme. Typical applications include brackish water, desalination, and brine injection. Duplex stainless steel offers superior corrosion resistance combined with high strength.

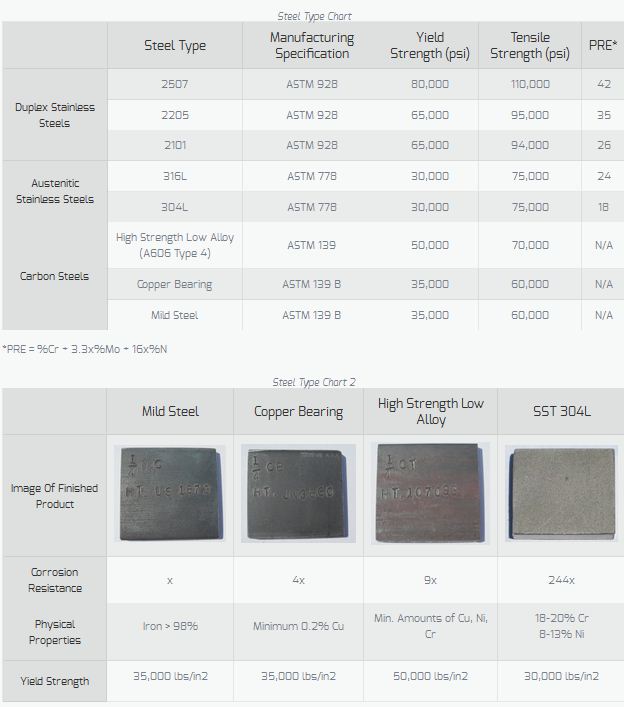

Roscoe Moss Company manufactures water well casing and screen in a variety of corrosion resistant materials. Factors such as water quality, strength requirements, and expected well life all play an important role in determining what steel type is best for each specific job.
Stainless Steel Types 304/304L and 316/316L
Stainless steel is used for wells where corrosive elements limit the effective life of carbon, copper-bearing and HSLA steels. Stainless steel is particularly resistant to detrimental effects of hydrogen sulfide, carbon dioxide and saline water. Removal of incrustation by acidizing, a method not recommended for some other steels, may be accomplished in stainless steel screens.
High-Strength Low-Alloy (HSLA) Steel
Corrosion-resistant, high-strength low-alloy steel casing and screen is designed and produced for use in water wells when corrosion resistance, strength and durability are important requirements. Stronger than mild or copper-bearing steel, HSLA casing and screen is an excellent choice for deep, large-diameter wells. Although more corrosion resistant than mild or copper-bearing steel, in wells where severe corrosive elements are present, an analysis must be made before selecting this material over stainless steel.
Copper-Bearing Steel
Used for wells where resistance to corrosion is an important requirement. Although not as corrosion-resistant as HSLA or stainless steel, copper-bearing casing and screen last significantly longer than mild steel products.
Mild Steel
Also referred to as Low Carbon Steel, this is used for wells when short-term economic considerations are a priority.
