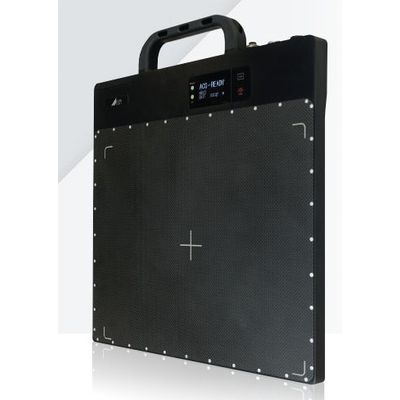

DURR - Model DRC 2430 NDT -Extremely Robust and Waterproof Digital Detector Array (DDA)

High-resolution
76 μm pixel pitch

Dust-tight & waterproof
Protection level IP67

Lightweight & ruggedized
3.2 kg / 1 m drop test pass

• Suitable for X-ray and gamma sources
• Extremely robust design with handle for easy portability
• Dust-tight and waterproof (IP67)
• High-resolution
• Display with Wi-Fi, LAN, battery, and sensor status indicators
• Built-in wireless access point
• Connector for Gigabit Ethernet and power
• 1 meter drop test pass
• 2 battery packs included

• Active area: 233 mm x 291 mm (9.2" x 11.5")
• Dimensions (H x W x D): 368 mm x 327 mm x 21.5 mm
• Weight: 3.2 kg (7 lbs)
• Number of pixels: 3072 x 3840
• Exposure time: 500 ms to 180 s
• Image transfer time
• (wired/wireless): 2/4 s
• Pixel pitch: 76 μm
• Scintillator: GOS
• ADC: 16-bit
• Interface: Gigabit Ethernet, WLAN: 2.4 GHz (802.11abgn) / 5 GHz (802.11n, 2x2 MIMO)
• Battery: Lithium-ion (7.4 V, 29.6 Wh)
• Operating conditions: 0 to 45°C (32 to 113°F), 30 to 85 % humidity
• Protection level: IP67 (dust-tight and waterproof)
• Housing: Aluminum frame, carbon-fiber entrance window (150 kg area load)
• Software: DÜRR NDT D-Tect 9.9 or higher
• Scope of supply: Detector, 2 battery packs, battery charger, Ethernet data cable
