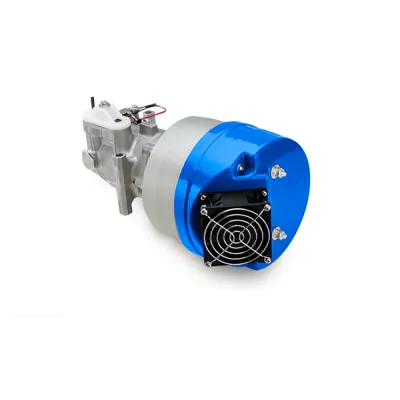

Duryea - 12V, 24V, 28V DC Air Conditioning System for Vehicles

SHARE
Duryea Technologies offers a versatile 12/24/28 volt scroll compressor drive designed for vehicle electric air conditioning applications. This unit, manufactured in the USA, features the highly efficient SolidSlot™ brushless motor with a 95% efficiency rating. It provides over double the power of typical products in the market. Specifically engineered for demanding low-voltage applications, it is ideal for larger vehicles including trucks, buses, military platforms, and aircraft. Custom configurations are available upon request to meet specific needs. The unit ensures maximum cooling capacity and reliability, making it a top choice for high-performance requirements in various mobile and stationary settings.
Most popular related searches
air conditioning
air conditioning application
air conditioning control
electric vehicle
evaporative condenser

Duryea’s standard* 12/24/28 volt scroll compressor drive is a universal solution for vehicle electric air conditioning. This American-made unit is built with a low-core loss, 95% efficient SolidSlot™ brushless motor, which is able to deliver more than twice the power of typical products.

The high-performance choice for low-voltage requirements, Duryea compressor drives offer maximum cooling capacity for demanding applications and larger vehicles, such as trucks, buses, military platforms and aircraft.

  • Integrated low-EMI electronic commutation.
  • Standard air-conditioning controls switch the motor on and off as they would a belt-driven compressor’s electric clutch.
  • Compatible with standard air-conditioning systems and components: condensers, evaporators, refrigerator lines, and fans.
  • Non-hermetic – doesn’t add heat to the refrigerant.
  • Variable output option with Duryea’s EMI-filtered controller
12V Operation
  • Cooling Capacity: 8,500 – 10,000 BTU/hr (0.75 Tons)
  • Speed: 2,000rpm
  • Triple the performance of competing 12V units
  • Cost savings estimated at 50% per BTU/hr over other brands
24V Operation
  • Cooling Capacity: 17,000 – 20,000 BTU/hr. (1.5 Tons)
  • Speed: 4,000rpm
  • Double the performance of competing 24V units
  • Cost savings estimated at 20% per BTU/hr over other brands
28V Operation

(Standard for aircraft and defense applications)

  • Cooling Capacity: 20,000-23,000 BTU/hr (1.6 Tons)
  • Speed: 4,600rpm
  • Double the performance of competing 28V units
  • Cost savings estimated at 20% per BTU/hr over other brands
