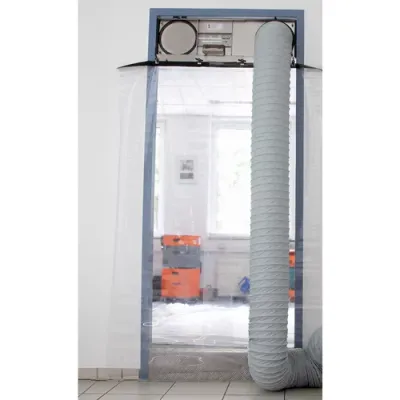

Heylo - Model DCD-3.0 -Dust Control Door

Clean partitioning of doors during renovation work. The core piece is the dust protection door DCD-3.0 - for quick and safe partitioning between the working or dirty area and the white area.

The dust extraction openings in the door element offer a wide range of combination possibilities, resulting in the Heylo complete solutions against dust on the construction site - the DCS dust protection systems.

• For renovation work to quickly and safely seal off doors between the work or dirt area and the white area
• Includes two integrated dust extraction openings: this creates a wide range of combination options (Heylo DCS dust protection systems)
• An air cleaner or fan can be connected using air hoses
• For working with hazardous substances, e.g. mould: Air cleaner with HEPA filter
• Easy transport with carrier bag
• Easy and quick mounting via quick acting closure
• High air rate possible
• Flexible adaptation to different door widths thanks to extensions (four door adaptors A - D included)
• Easy cleaning

Dust extraction in the working area: The practical dust extraction openings allow a hose to be routed directly to the point of origin of the dust in the working area. The PowerVent 3000 mobile fan easily extracts the dust and collects it in M-class dust bags.

Negative pressure in the work area: The DCD-3.0 in combination with a filter fan (PF 1000/PF 1400/PF 3500) and hose connection placed in the white area near the dust protection door results in negative pressure maintenance in the suction method. For work with hazardous substances (e.g. mould), filter-fans with hepa-filters can be used.

• Basic element (l x w x d) : mm : 680-830 x 300 x 81
• Suitable for door witdths incl. Adaptor : mm : 680-1,430
• Hose connection : Ømm : 2 x 205
• Weight : kg : 8
