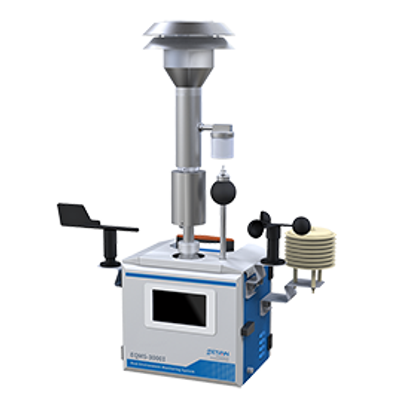

Zetian - Model EQMS-3000I -Dust Environment Monitoring System (Laser Scattering)
Based on the industry features and current situation of pollution produced by construction sites and enterprises, our company has developed digital EQMS-3000 remote monitoring & management system by utilizing Network Cloud Platform Technology. The system cans online measure the concentration of particulate matter in the air (including TSP, PM10 and PM2.5), ambient noise and five meteorological five parameters, etc. The monitoring data will be processed, and the results will be uploaded to the server through GPRS/network, which can realize multi-mode intelligent management of online monitoring, analysis and prediction.
Most popular related searches
laser dust monitoring
dust monitoring
environment monitoring system
ambient dust monitoring
industry air quality
remote video monitoring
remote monitoring
environment monitor
car park monitoring
environmental monitoring
- Support precise navigation & positioning, remote video monitoring
- Auto over-standard alarm: timely alert on-site operators to pay attention
- Intelligent comparison: provide dynamic change analysis of project and regional dynamic analysis
- Joint prevention and control, open sharing platform
- It can be widely applied to online monitoring of dust and noise in construction sites, highways, communities, factory boundaries, tourist areas, waste incineration plants and enterprise production sites.
- Measuring range of noise: 30dB~130dB(A)
- Noise frequency: 20Hz~12.5kHz
- Noise error: ±0.5dB
- Measuring range of PM: 0~10~30mg/m3
- PM resolution: 0.001mg/m3
- Measuring range of wind speed: 0~45m/s
- Accuracy of wind speed: ±0.3m/s
- Measuring range of humidity: 0~100%RH
- Measuring range of temperature: -50℃~100℃
- Resolution of camera: 1280x960 px
- IP grade of camera: IP65
- Camera angle: 360°
- Output interface: RS485/Ethernet, 3G (optional)
- Working temperature: -20℃~50℃
