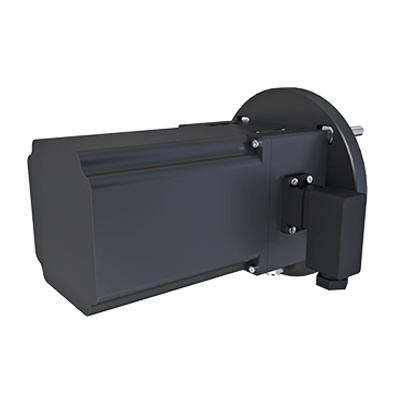

Zetian - Model MS-1000 -Dust Monitor (Back Scattering)
MS-1000 Dust Monitor is a self-developed online dust analysis product based on back scattering principle of laser. The core components are all imported. The product is mainly used for continuous monitoring of particulate matter concentration, realizing continuous dust detection for single point or multiple points. It can also be matched with CEMS to provide real-time dust data.
Most popular related searches
dust monitoring
particulate matter concentration
dust emissions monitoring
real-time dust
flue gas
dust detection
emissions monitoring
dust emissions
dust analysis
particulate matter
- Support on-site zeroing and span calibration
- Auto gain control and temperature compensation
- Small and compact structure, easy for installation and disassembly
- Eliminate interference of stray light in the background
- Applied in dust emission detection, detection and control in desulphurization & dust removal engineering of flue gas in power generating boiler, industrial kiln and industrial boiler of thermal power plant, steelworks, cement production factory, ceramics factory and waste incineration plant, etc.
- Flue diameter: 0.5m~15m (customizable)
- Power: <3W
- Range: 0~500mg/m3, 0~10g/m3 (customizable)
- Indication error: ??20%
- Span drift: ±2%F.S.
- IP grade: IP65
- Flue gas temperature:<300? (higher temperature can be customized)
- Human-computer interaction: upper computer software, bluetooth is optional
- Analog output: 1x4-20mA, max load of 800Ω
- Communication interface: RS485, 2xrelay output
- Working temperature: -20?~45?
