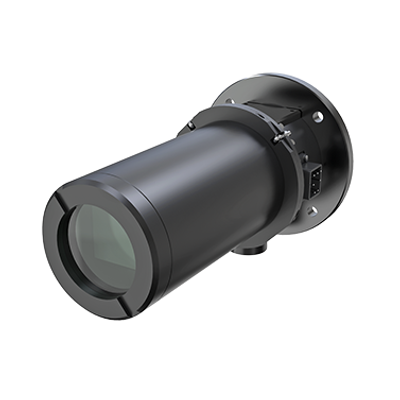

Zetian - Model DMS-100 -Dust Monitor (Back Scattering)
DMS-100 Dust Monitor is a self-developed dust analysis product based on Laser Back Scattering Principle. The core components are all imported. The product is mainly used for continuous monitoring of particulate matter concentration, realizing continuous dust detection for single point or multiple points. It can also be matched with CEMS to provide real-time dust data.
Most popular related searches
dust monitoring
particulate matter concentration
dust emissions monitoring
real-time dust
flue gas
dust detection
emissions monitoring
dust emissions
dust analysis
particulate matter
- Support on-site zeroing and span calibration
- Auto gain control and temperature compensation
- Small and compact structure, easy for installation and disassembly
- Eliminate interference of stray light in the background
- With infrared remote control function
- Applied in dust emission detection, detection and control in desulphurization & dust removal engineering of flue gas in power generating boiler, industrial kiln and industrial boiler of thermal power plant, steelworks, cement production factory, ceramics factory and waste incineration plant, etc.the goal of online monitoring for the city vehicle pollution.
- Range: 0~500mg/m3, 0~10g/m3 (customizable)
- Indication error: 20%
- Span drift: ±2%F.S.
- Flue diameter: 0.5m~15m (customizable)
- IP grade: IP65
- Analog output: 1x4-20mA, max load of 800Ω, 2x4-20mA is optional
- Communication interface: RS485 (optional)
- Working temperature: -20℃~45℃
- Flue gas temperature: 300℃ (higher temperature can be customized)
- Human-computer interaction: infrared remote controller LCD (large screen)
