Zetian - Model DMS-300I - Dust Monitor ...

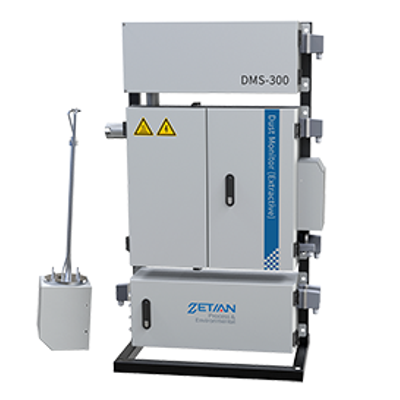

Zetian - Model DMS-300I -Dust Monitor (Extractive)

FromHangzhou Chunlai Technology CO., Ltd.

The DMS-300 Dust Monitor (Extractive) is a self-developed online dust analysis product based on Laser Forward Scattering Technology. All key components are imported. It is especially suitable for online dust monitoring under low temperature and high humidity working condition.

Most popular related searches

dust monitoring

dust extraction

online dust monitoring

dust emissions monitoring

Extract dust under high temperature tracing, avoiding moisture interfering dust measurement
Adopt jet pump of large diameter, preventing dust accumulation and cause blockage, long maintenance-free time
Temperature compensation and auto range switching function
Parallel and isokinetic sampling of pitot tube, meeting technical requirements of dust sampling

Applied in dust monitoring and ultra-low emission monitoring of power plant under low temperature and high humidity (typical value≤5mg/m3)

Range: 0~20mg/m3, 0~50mg/m3 (customizable)
Detection limit: 0.05mg/m3
Indication error: 򉤱20%
Repeatability of indication error: ±10%
IP grade: IP54
Power: 1500W
Analog output: 4x4-20mA output, max load of 500Ω
Communication interface: RS485, RS232 (optional)
Working temperature: -20℃~50℃
Medium temperature:<300℃
Human-computer interaction: OLED display
Weight: 100kg
