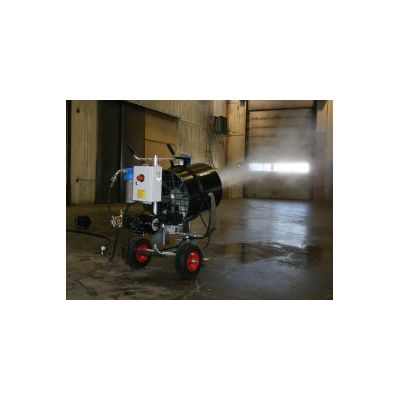

MOSQUITO - Model UF -Dust Suppression Machine

• Fan motor rating, kW: 1
• Pump motor rating, kW: 0,6 / 1,2
• Total kW (incl misc kW): 1,7 / 2,3
• Current consumption, max, Amp: 8 / 11
• Specified voltage: 230 AC
• Frequency: 50 Hz
• Power connector size: 2 pin + PE (Schucko) (type F)
• Control panel: Buttons
• Weight, max, kg110
• Length, mm: 1200
• Width, mm: 750
• Height, mm 1150
• Elevation, HAND: -20 to +60°
• Throw (up to), m: 15
• Turning: NO (also see OPTION)
• Water connection: Thread 1” BSP (DN25)
• Required in pressure: 2 - 10 bar
• Nozzle pressure: 100 bar
• Filtration system: 2 step / 400 + 80 microns
• Wheel set: YES
• Operating temp.: +1°C to +40°C
• Storage temperature: -30°C to +60°C

Flow all nozzles, l/m
3 / 0,6 kW 0,9
12 / 1,2 kW3,5
