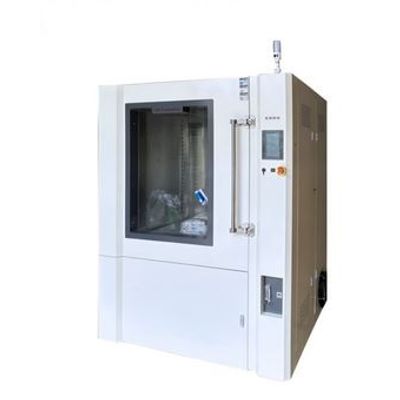

Lab Companion - Model LM-IP56X-1452L -Dustproof Testing Chamber

Dust Test Chamber

1. The equipment shell liner is made of high-quality stainless steel plate, the overall appearance is beautiful and generous. There is a large area observation window and a manual wiper device in the middle of the door, which can facilitate the test of the test specimen to be clearly seen during the test.
2. The main controller of the device is a touch screen controller.
3. The equipment is heated with stainless steel finned heating tubes.
4. conical funnel is designed with a dust collection port and a dust extraction port at the bottom. A high-pressure turbine circulating fan is installed at the dust extraction port to send the pumped dust to the top of the inner box, and then the dust is blown vertically and naturally downward from the top. When the dust falls on the side wall of the funnel, the dust is recovered to the dust extraction port through the vibration device, and then cycle.
5. The blowing period and vibration period of the whole equipment are adjustable, and equipped with a total test timer.
6. The unique air duct design ensures the vertical circulation of non-laminar flow in the box

Box: well sealed, effectively prevent dust leakage, and with synchronous covibration device, to prevent the accumulation of dust box wall; The inner box is equipped with a dust concentration homogenizer and a hot-wire anti-static adsorption dust drying device, and adopts a full-penetration observation window and dust scraper.
