Eizo - Model TDL3600 / TDL2300 -DVI Transmission Links
The DVI transmission links TDL3600 and TDL2300 allow high quality video data to be transmitted between PC and monitor over a distance of up to 36 meters without any loss of quality. This means that image signals can also be routed to ceiling mounted monitors. With conventional connection cables, error-free image transmission is only possible over a maximum distance of 5 meters.
Robust Solution

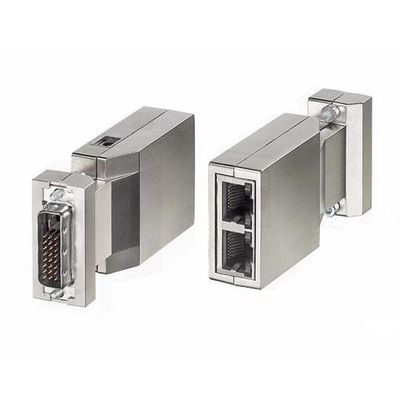

The data is transmitted via highly qualified Ethernet cables and is characterized by its immunity to interference and easy installation. The transmitter and receiver modules are simply screwed onto the DVI interfaces on the PC and on the monitor.
Compact Design
The transmitter and receiver modules are characterized by low weight and small dimensions. The small RJ45 plugs on the cable make it possible to pass through narrow cable tubes and openings.
DVI Compatibility
The TDL transmission links enable image signals to be transmitted in accordance with the DVI standard. The monitor-specific characteristic data (EDID) is also transferred over the links.
Immediately Ready for Use
The transmitter and receiver modules do not have any operating elements. Manual settings are not required, all parameters required for operation are automatically optimized. All relevant signals are transmitted without user intervention. Modules do not have their own switches and are switched on together with the PC or monitor.
Maintenance-Free System
Maintenance and servicing work is not necessary for the modules and cables. Only the cables supplied may be used without additional plug connections in order to guarantee trouble-free operation.
Status Display
LEDs on the transmitter and receiver modules indicate the respective operating status.
General
- Model Variations: TDL3600-QL: Quad Link, 36m
- TDL3600-DL: Dual Link, 36m
- TDL3600-SL: Single Link, 36m
- TDL2300-SL: Single Link, 23m
- Cabinet Color: Silver
- Certifications & Standards (Please contact EIZO for the latest information): CE, IEC/EN60601-1, CAN/CSA C22.2 No. 60601-1:08, ANSI/AAMI ES60601-1:2005, EN60601-1-2 Class B, FCC-A, RCM, RoHS, China RoHS, WEEE
- Supplied Accessories (May vary by country. Please contact EIZO for details): TDL3600-QL: Transmitter x 2, Receiver x 2, mounting set for LX550W/LS580W/LL580W, mounting set for LMM56800/LMM0802, 36 m cable x 4
- TDL3600-DL: Transmitter, Receiver, 36 m cable x 2, AC adapter
- TDL3600-SL: Transmitter, Receiver, 36 m cable, AC adapter
- TDL2300-SL: Transmitter, Receiver, 23 m cable, AC adapter
- Utility Disk (PDF Instructions for Use)
Video Signals
- Input Terminals: TDL3600-QL: DVI-D (Dual Link) x 2
- TDL3600-DL: DVI-D (Dual Link)
- TDL3600-SL / TDL2300-SL: DVI-D
- Input Resolution: TDL3600-QL: 3840 x 2160
- TDL3600-DL: 2560 x 1600
- TDL3600-SL / TDL2300-SL: 1920 x 1200
- Output Terminals: TDL3600-QL: DVI-D (Dual Link) x 2
- TDL3600-DL: DVI-D (Dual Link)
- TDL3600-SL / TDL2300-SL: DVI-D
- Output Resolution: TDL3600-QL: 3840 x 2160
- TDL3600-DL: 2560 x 1600
- TDL3600-SL / TDL2300-SL: 1920 x 1200
Features & Functions
- Controls and Status: LEDs (power, status)
Power
- Power Requirements: PC side: through DVI interface
- Monitor side: 5 V support from monitor
- Optional: 5 V external power supply
Environmental Requirements
- Degree of Protection: IP20
Physical Specifications
- Net Weight: 0.1 kg (each transmitter and receiver, without cable)
- Mechanical Installation: Transmitter module at PC side (DVI-D ~ RJ45)
- TDL cable (RJ45 ~ RJ45)
- Receiver module at monitor side (RJ45 ~ DVI-D)
