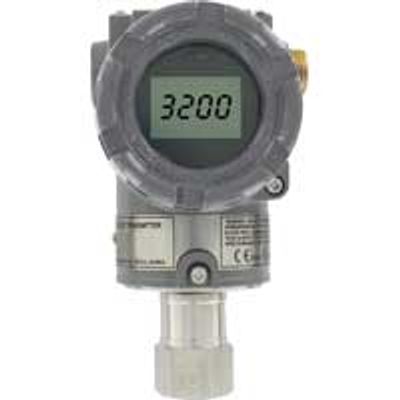

Dwyer Mercoid - Model 3200 -Explosion-Proof Pressure Transmitter
The Mercoid® Series 3200 Smart Pressure Transmitter from Dwyer Instruments is a microprocessor-based high performance transmitter, which has flexible pressure calibration, push button configuration, and is programmable using HART Communication. The Series 3200 is capable of being configured with the zero and span buttons-- a field calibrator is not required for configuration. The transmitter software compensates for thermal effects, improving performance. EEPROM stores configuration settings and stores sensor correction coefficients in the event of shutdowns or power loss. The Dwyer Series 3200 pressure transmitter is FM approved for use in hazardous (classified) locations. The 100:1 rangeability allows the smart transmitter to be configured to fit any application.
- Service: Compatible gases, steam, liquids or vapors.
- Wetted Materials: 316L SS.
- Accuracy: ±0.075% FS (@ 20°C).
- Rangeability: 100:1 turn down.
- Stability: ±0.125% FSO/yr.
- Temperature Limits:
- Process: -40 to 248°F (-40 to 120°C);
- Ambient (without LCD): -40 to 185°F (-40 to 85°C);
- Ambient (with LCD): -22 to 176°F (-30 to 80°C).
- Thermal Effect: ±0.125% span/32°C.
- Power Requirements: 11.9 to 45 VDC.
- Output Signal: 4 to 20 mA/HART® Communication.
- Response Time: 0.12 seconds.
- Damping Time: 0.25-60 seconds.
- Loop Resistance:
- Operation: 0 to 1500 Ohm;
- HART® Communication: 250 to 500 Ohm.
- Electrical Connection: Two 1/2? female NPT conduit, scew terminal.
- Process Connection: 1/2? female NPT.
- Display: Optional 5 digit LCD.
- Enclosure Rating: NEMA 4X (IP66) and explosion-proof for Class I, Div I, Groups A, B, C and D.
- Weight: 5.5 lb (2.5 kg)
- Agency Approvals: CE, FM.
- Completely configurable using zero/span buttons (no calibrator required)
- Rangeability (100:1)
- High accuracy (0.075%)
- Automatic ambient temperature compensation
- Fail-mode process function
PSI, BAR, mBAR, g/cm2, PA, kPA, Torr, ATM, MPA, IN H2O, IN Hg, ft H2O, mm H2O, mm Hg, Kg/cm2, %
