DyanCHARGE - Model PM 1 PRO -Particulate Monitor System
FromAuburn
The DyanCHARGE™ PM 1 PRO is designed to improve efficiency and productivity by accurately measuring low-level particulate matter continuously. This particulate monitor employs charge induction/electrodynamic sensing for continuous monitoring, and detection of particulate in stacks, ducts, pipes, and filter leak detection. The PM 1 PRO is ideal for EPA compliance and meets requirements for EPA MACT, NESHAP, Title V/CAM and corresponding international regulations (TUV, MCERTS etc).
Most popular related searches
particulate monitoring
particulate sensor
filter leak monitoring
baghouse dust collector
particulate monitoring system
MACT NESHAP
hazardous area
continuous particulate monitor
filter leak
baghouse dust

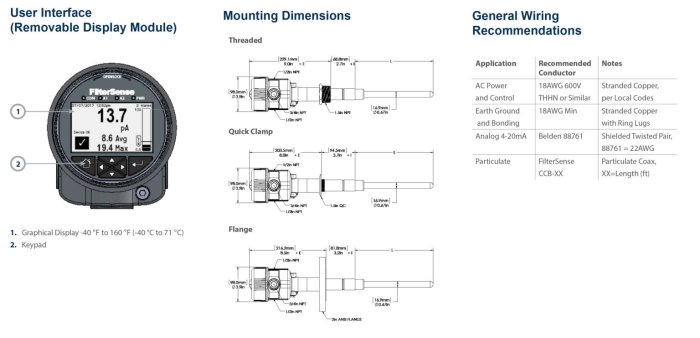

User-Friendly Data Presentation
- Advanced graphic display and direct pA outputs
- Connectivity options: USB, Bluetooth, [Optional] HART, and basic internal data logging
- Modbus RTU (RS-485) for enhanced data access
Simplified Setup and Compliance
- High-performance, rugged construction
- Choose 2-wire loop or universal line power with relays
- Integral or remote electronics for added convenience
- Automatic EPA self-tests, MACT compatibility, and compliance with stringent standards, and device diagnostics to NAMUR 107

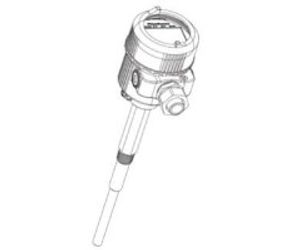

- Integral electronics for accessible locations
- Electronics and display are integral to the particulate sensor

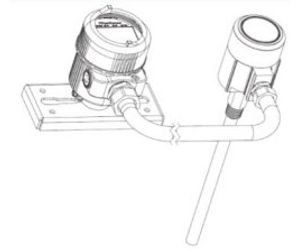

- Remote electronics for hard-to-access locations and very high-temperature applications
- Electronics and graphical display are mounted separately from the particulate sensor
- Requires PS 10 particulate sensor and coaxial cable (CCB-XX)
Technical Data:
- Resolution: 0.1 pA (Measurement)…0.5 pA (Monitor)…5.0 pA (Detect)
- Minimum Detection: 1.0 mg/m3 or less
- Max. Process Pressure: 1000 psi (69 bar)
- Max Process Temperature: 1650 °F (898 °C)
- Ambient Temperature Range: -40 °F to 158 °F (-40 to 70 °C)
- Hazardous Areas: Class I Div. I (Zone 0/20)
Available Models:
- PM 1 PRO-T (Transmitter): Loop Powered/4-20mA (2-wire)
- PM 1 PRO-A (Alarm): 20VDC to 240 VAC/2 SPST 5A @ 240 VAC
- PM 1 PRO -AT (Alarm & Transmitter): 20 to 250 VAC/VDC , 2 SPST 5A @ 250 VAC/30 VDC ,4-20 mA output
