DyanCHARGE - Model PM 100 PRO -Advanced Particulate Monitoring System
FromAuburn

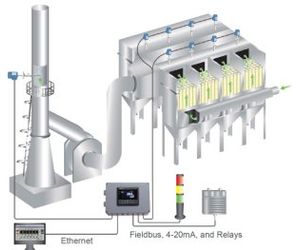

DyanCHARGE™ PM 100 PRO is an advanced particulate monitoring system that utilizes unique sensing technology to accurately measure low levels of particulates and ensure regulatory compliance. It features an advanced processor/display, an innovative MICS™ platform, possibility to add up to 32 monitoring points, and a robust construction, all of which contribute to its wide range of features and configurations that can cater to specific needs.
Most popular related searches
advanced particulate monitor
particulate monitoring system
particulate monitoring
particulate sensor
filter leak
pressure sensor
MACT epa
stack measurement
MACT
leak sensing

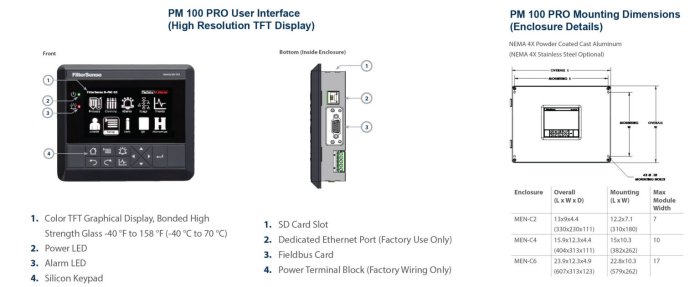

Enhanced User Interface
- Full color graphical display with easy-to-understand icons and graphics
Low Maintenance Design
- Robust sensing technology and filter leak diagnostics
- Eliminates the need for manual instrument performance inspection
- Sensors remain unaffected by dust, moisture, and heat
Comprehensive Compliance
- Automatic EPA self-checks and adherence to US EPA MACT guidelines
- Device and process diagnostics meet NAMUR 107 standards
- Certified fieldbus protocols for seamless operation
Data Accessibility
- On-board data logging for fail-safe data access
- Data historian with mirrored SD card for data redundancy
- Resolution: 0.1 pA (Measure), 0.5 pA (Monitor), 5.0 pA (Detect)
- Minimum Detection: at least 1.0 mg/m3
- Process Pressure (sensor max.): 1,000 PSI (69 bar)
- Process Temperature: -40 °F – 1650 °F (-40 °C to 898 °C)
- Ambient Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
- Power: 110-220 VAC (or) 24 VDC
- Output: Analog and Discrete (up to 16)
- Input: Analog and Discrete (up to 16 each)
- Particulate Sensor(s): PS 10-HP/XD Types
Available I/O Modules:
- Analog Module: 3 Analog IN, 3 Analog OUT
- Digital Module: 3 Digital IN, 3 Digital OUT
- Mixed Module: 1 Analog IN, 1 Analog OUT, 2 Digital IN, 2 Digital OUT
