DynaCHARGE - Model PM 1 -Particulate Monitor System
FromAuburn
For a budget-savvy choice in continuous particulate flow and emissions monitoring, turn to the DynaCHARGE™ PM 1. It outshines competitors in its price range, thanks to unique DynaCHARGE™ technology. These affordable monitors are your solution for watching over even the smallest dust collectors. Opt for the PM 1-A for essential alarms or the advanced PM 1-T for proactive bag leak detection. With the DynaCHARGE™ PM 1, quality and savings are a package deal.
Most popular related searches
bag leak detection
baghouse dust collector
particulate monitoring system
particulate monitoring
dust collector
hazardous area
baghouse dust
emissions monitoring
leak detection
continuous particle emissions monitoring
Easy to Understand Data
- Real time display of pA
- Simple user interface
- Multi-lingual options

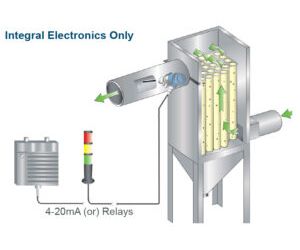

Simple Installation
- Lower costs with integral configuration
- Easy new and retrofit installation options
- NPT and quick clamp fittings available
- 2 wire loop or universal line power with relays
Low Maintenance Requirements
- Sensor health checks on power up
- Coated probes available for damp and sticky environments
- Low service requirements
Technical Data:
- Resolution: 0.5 pA (Monitor) and 5.0 pA (Detect)
- Minimum Detection: ~1 – 5 mg/m3
- Process Pressure: Full Vac to 10 PSI (0.69 bar)
- Process Temperature: -13 °F – 450 °F (-40 °C to 232 °C)
- Ambient Temperature:-13 °F to 140 °F (-25 °C to 60 °C)
- Hazardous Areas: Class II Div. II (Zone 22)
Available Models:
- PM 1-T (Transmitter): Loop Powered/4-20mA (2-wire)
- PM 1-A (Alarm): 20VDC to 240 VAC/2 SPST 5A @ 240 VAC
- PM 1-AD (Alarm DC Only): 24VDC
