DynaCHARGE - Model PM 100 -Particulate Monitoring System
FromAuburn
The DynaCHARGE™ PM 100 offers reliable particulate monitoring and leak/flow detection, as well as a solid range of basic features, functions, and I/O through the MICS™ platform. It is an effective solution to prevent and reduce the risks of being out-of-compliance, production downtime, product loss, and equipment damage.
Most popular related searches
particulate monitoring
baghouse dust collector
particulate monitoring system
flow detection
particulate sensor
baghouse dust
integrity monitoring
pressure sensor
dust collector
baghouse collector
Effortless Maintenance
- Robust sensing technology eliminates the need for manual instrument performance inspection
- Complies with US EPA MACT guidelines
- Remains unaffected by dust, moisture, and heat, offering superior performance compared to traditional triboelectric systems
Flexible and Expandable
- Modular design options provide flexibility
- Wide range of I/O and fieldbuses for seamless integration

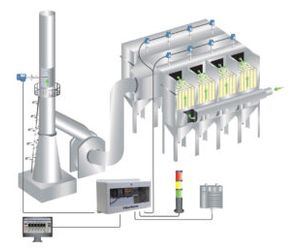

- Monitor up to 8 points, making it ideal for multi-compartment filters.
- Resolution: 0.5 pA (Monitor) and 5.0 pA (Detect)
- Minimum Detection: ~1 – 5 mg/m3
- Process Pressure (sensor max.): 10 PSI (0.69 bar)
- Process Temperature: -40 °F – 450 °F (-40 °C to 232 °C)
- Ambient Temperature: -13 °F to 140 °F (-25 °C to 60 °C)
- Power: 110-220 VAC (or) 24 VDC
- Output: Analog and Discrete (up to 8)
- Input: Analog and Discrete (up to 8 each)
- Particulate Sensor(s): PS 10-S Type
Available I/O Modules:
- Analog Module: 3 Analog IN, 3 Analog OUT
- Digital Module: 3 Digital IN, 3 Digital OUT
- Mixed Module: 1 Analog IN, 1 Analog OUT, 2 Digital IN, 2 Digital OUT
