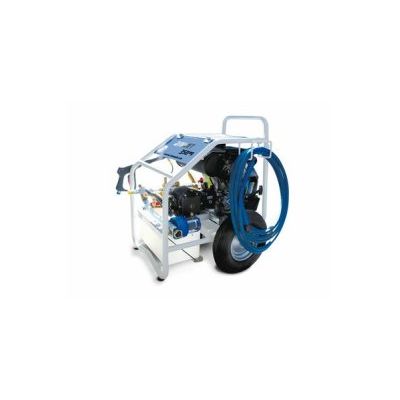

Dynajet - Model 350mg -High Pressure Cleaners
Small, efficient and independent: that`s DYNAJET`s compact "mg" class with a powerful petrol motor. Just like the other DYNAJET trollies in the "mg" class, the special features of the DYNAJET 350mg, offering a working pressure of up to 350 bar (5,075 PSI), are its light weight, small dimensions and easy-loading and easy-transportation characteristics.
Structure:
- Robust, powder-coated steel frame for optimum machine protection and a long service life
- Single-axle chassis with pneumatic tyres for easy on-site manoeuvrability
- A perfect centre of gravity for flexibility and stability
- Screws made of corrosion-free material for high durability
- Central lifting eye for easy transportation and handling
- Operating-hours counter for optimum product costing analyses
- 12 V socket for the power supply to the Dynabox 12 V hot-water module
Drive:
- Vibration-proof starter battery for effortless start-up
- Flexible vibration elements to absorb vibration between the motor, pump and frame
- Electric starter for easy starting of the machine
- Robust 4-stroke petrol motor with 2 cylinders
- Oil-pressure monitoring to protect against motor damage
Water supply:
- Suction pressure control to protect the pump in the case of a weak water supply
- Cleanable stainless-steel water filter for maximum service life of the pump
- Low-maintenance industrial crankshaft pump for high performance and maximum service life
- Thermo safety valve for additional protection of the pump
- Safety valve for additional safety during operation
- Large-sized bypass hose to prevent pressure peaks and temperature increases
Base data
- System Cold-water high-pressure cleaners
- Type Trolly/Box
Pressure
- Pressure class 350 bar (5,075 PSI)
- Pressure variable Yes
- Minimal pressure 170 bar (2,465 PSI)
Hydraulics
- Minimum flow rate 7 l/min (1.85 USgal/min)
- Maximum flow rate 21 l/min (5.56 USgal/min)
- Pump revolution speed Max. 1450 rpm
- Hydraulic power 14 kW (19 Hp)
- Pump Triplex plunger pump with ceramic coating
Threaded connection
- Input port GEKA
- Output port M22x1.5 ET
Drive
- Drive type Gasoline / Petrol motor
- Motor power 17.2 kW (23 HP)
- Motor speed Max. 3250 rpm
- Motor type Vanguard 2-cylinder, 4-stroke gasoline / petrol motor
- Power transmission from motor to pump Gearbox
- Fuel consumption 5.5 l/h (1.46 USgal/h) (average)
- Volume fuel tank Approx. 20 l (5.28 USgal)
Others
- Medium Clear water, up to 40 °C (104 °F), min. 1.8 bar (26 PSI) to max. 6 bar (90 PSI) supply pressure
- Chassis 2 wheels, trolly concept
- Weight in kg 120.0
- Dimensions (L/W/H) 75 x 79 x 99 cm
- Article number 1486005W
Lifting eye, 12 V DC socket, operating-hours meter, 2-cylinder gasoline/ petrol engine with electric starter, engine-oil pressure monitoring, engine key switch, level sensor to protect the machine from running dry, stainless-steel water filter, supply-pressure and water temperature-monitoring, crankshaft pump, high-pressure gauge, safety valve, Automatic pressure regulation with bypass function for infinitely variable pressure adjustment, operating manual
Scope of supply:10 m high-pressure hose for hot/cold-water, high-pressure cleaning gun with extension pipe (total length approx. 800 mm), nozzle carrier and 15° flat-jet nozzle
