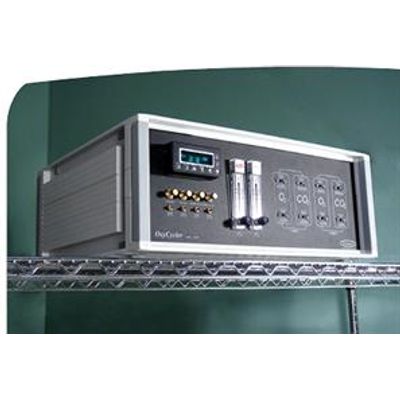

OxyCycler - Model A42OC -Dynamic O2 & CO2 Controller for Animal Modeling
Chambers can be controlled in many combinations. This includes simultaneous, independent gas control, different gas percentages in different chambers, or identical conditions at different times. You can independently control and profile two chambers at the same time, which means you have one control profile and one experimental profile.
Bioactive Gas Control System for in vivo:
- Disease Modeling
- Pathology Modeling
- Therapy Modeling
with
- Multiple chambers
- Multiple set points
- Multiple variables
MULTI-VARIABLE
O2 is a widely used single gas system for hypoxia and hyperoxia. CO2 is an animal off-gas that must be managed, but is also useful in modeling. N2 is biologically neutral, and thus used toflush chambers and lower either O2 or CO2 concentrations without interfering with the experiment. The OxyCycler A42OC manages the three simultaneously with a single controller.
CONTROL IS EFFICIENT
Feedback from the adapter pod’s sensors tells the OxyCycler A42OC the exact amount of gas to infuse. No gas is ever wasted with this O2/CO2 controller for animal modeling. Recovery after access is rapid within the BioSpherix sub chambers, which avoids prolonged deviations from the set-point.
MULTI-SETPOINT
The gas concentration can be programmed to change at any time. Simply program a series of setpoints each associated with a separate time. Intermittent hypoxia is a common example.
Dynamic control allows the operator the unique ability of simulating natural conditions, as well as creating and manipulating new artificial conditions.
OPERATION IS SIMPLE
Once the O2/CO2 controller for animal modeling is installed and configured, it’s easy. Check the calibration once in a while and don’t run out of gas. Otherwise it’s all automatic. The system can work continuously year round, or on occasion as needed.
- ELECTRICAL POWER: 12 VDC @ 6.66A
- CONTROL RANGE: 0.1-99.9% Oxygen, 0.1-20.0% Carbon Dioxide
- ACCURACY: ± 1%
- RESOLUTION: 0.1%
- GAS SOURCE: Compressed gas tanks, liquid carboys (from headspace), or generators.
- GAS SUPPLY: Nitrogen, Oxygen, Carbon Dioxide
- GAS SUPPLY LINE: 1/4 inch I.D. hose pressure rated at 40 PSIG.
- GAS SUPPLY LINE PRESSURE: 0-40 PSIG
- GAS INFUSION RATE: 1-150 S.C.F.H. each control gas each chamber.
- GAS SUPPLY HOSE FITTINGS: 1/4 inch hose barb.
- UMBILICAL LENGTH: 12 feet (custom lengths available).
- ACTUATOR POD SIZE: 7”h x 4.375”w x 4.5”d
- ALARM OUTPUT: Visible flashing indicator. PC adds audible and more visible indicators.
- ALARM MODES: Process high, process low, deviation high, deviation low, deviation band.
- WEIGHT: 22lbs
- DIMENSIONS: 9”h x 21”w x 18.5”d
- HOST CHAMBER TEMPERATURE: 0-40°C
- HOST CHAMBER CO2: 0.1%-20%
- HOST CHAMBER HUMIDITY: 5-95% non-condensing
Sensor Operational Parameters
- HOST CHAMBER TEMPERATURE: 0-40°C
- HOST CHAMBER CO2: 0.1%-20%
- HOST CHAMBER HUMIDITY: 5-95% non-condensing
