Dynamic Ratings - Control Cabinets

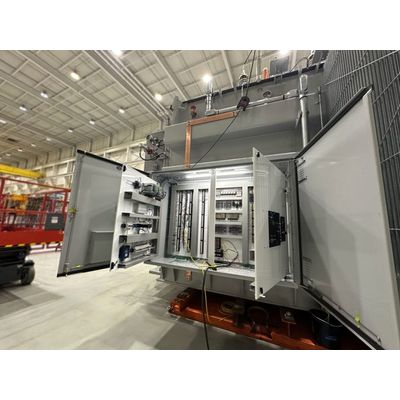

Custom transformer control cabinets help utilities become more efficient, economical, and safe. Each transformer control cabinet is customized to meet the needs of the user. Consistent components, layout and wiring in each cabinet across all brands of transformers make the operation crew’s job easier.
As your control cabinet manufacturer, we would be responsible for:
- Monitoring and control logic
- Support at the transformer factory
- On-site commissioning of the system
This avoids your hassle of multiple supplier coordination. It reduces the potential errors generated as design intent is passed from one company to another. In addition, single point accountability eliminates potential project delays and excess installation costs. Control cabinet wiring errors often require the OEM to return to the job site to fix wiring errors.
If you consider the volume of cabinets placed across all transformer OEMs, it is cost justifiable to fully integrate the products, eliminate redundant components and make the system more cost efficient and reliable.
Transformer OEMs have their own standardized components and designs. It is often easier for them to utilize their own standards and add in additional customer specific components over the top of their standard design without truly integrating the equipment. If they are only building one transformer, this makes sense as the engineering cost outweighs the benefit of simplifying the design. But if you need more than one transformer, it is justifiable to standardize the system.
Since each OEM has their own standard design, it time consuming for utility engineers to provide detailed reviews on every new cabinet and to force consistency that will benefit the utility. With a custom control cabinets supplier, the utility engineer(s) can review one standard design and once approved, all future transformers would utilize that one standard. Dynamic Ratings maintains a Customer Requirements Document that details all construction and instrument programming details with revision control.
Control cabinet instruments and sensors designs are tracked by Dynamic Ratings with reference to the serial number of the transformer. Once commissioned, the substation name is added to the records. If there is ever a need to locate “all control cabinets that have the following component or setting or logic or …” this detail can be easily retrieved.
Old transformers that are being updated to add monitoring or need new control cabinets installed due to aging wiring can utilize the same common control cabinet. Often it will be cheaper and easier to replace the complete control cabinet instead of adding new cabinets and interconnecting the new monitoring equipment. In place of complicated wiring diagrams that are redlined with all the changes, new drawings would provide better accuracy, while avoiding much of the consulting engineer cost.
Managing the chain of custody for digital equipment is a concern for a growing number of utilities. Since Dynamic Ratings will be on site to commission the control cabinets, it is easy to manage this process.
