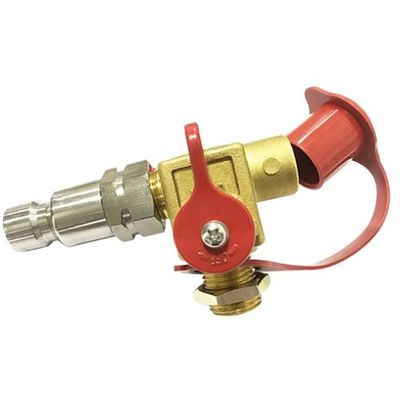

E-Xon - Model T1H4 -CNG Filling Valve

Product name : CNG filling valve. Model no. : T1H4. Weight : 760g. Material : Hot forging brass CNC machining. Maximum working pressure : 20MPa. Operating temperature : -40?----120?. Flow area : 19.6mm². Switch mode : Manual. Switch angle : 90°. Check valve : No. Outlet connector : M12X1. Bolt aperture : Φ24. ERP no.: CJ007018.
