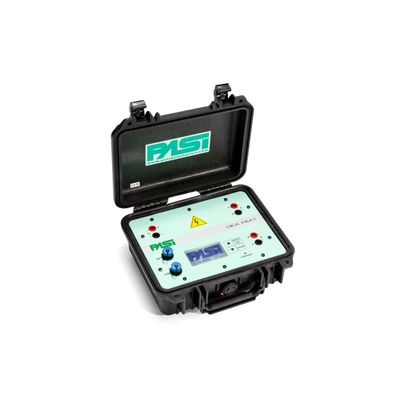

PASI - Model RM1 - Earth Resistivity Meter
From Earth Resistivity
RM1 is a compact versatile earth resistivity meter with 24 bit data acquisition. The console keyboard allows easy and immediate access to all the main functions, even in harsh environmental conditions. Supplied as a bundle with its programming, acquisition and data management software, RM1 not only works in 'stand alone' mode but also remotely, connected to any external PC (Windows 7 or higher). This way, the operator can easily create VES tables and customised measurement sessions, making the most of the guided preparation tools. Compatible with any external energiser (max. 1000V - 1A in the standard version, 5A max. in the upgraded version), RM1 is offered in combination with one or more P-200 (200V - 1A) energizers, which can be connected together in series. Completed with the necessary accessories for electrical tomography is able to realize ERT profiles up to a maximum of 32 el.
Applications:
- Subsoil groundwater prospecting at shallow, medium and great depth.
- Geological stratigraphy
- Studies of salt water contamination in fresh water layers
- Landslide monitoring
- Mineral exploration (sulphides, etc.)
- Archaeological research
Main Features
- 24 bit Sigma-Delta ADC + oversampling for noise reduction
- High resolution : 2nV - 1nA
- A.I. (Artificial Intelligence) Function with automatic setting of all acquisition parameters
- Standard deviation setting (σ) to optimise measurement accuracy and acquisition times
- Internal memory > 5000 measurements (standard version)
- VERTICAL ELECTRICAL SOUNDINGS (VES GEOPHYSICS)
ELECTRICAL RESISTIVITY TOMOGRAPHY FUNCTION (ERT) - 32 EL. (OPTIONAL) - USB data transfer
- Internal battery autonomy: > 1300 continuous measurements (tomography function); more than 40h of use in VES mode
- Power supply from external power bank (optional) or PC (via USB)
- Automatic Filtering – oversampling and 50/60 Hz electrical mains noise removal
- Noise reduction with stacking and average of the acquired values
- Self-calibration at start-up
- Connects to any external energy source - max.1000V-1A (5A opt.)
- Lightweight and compact
