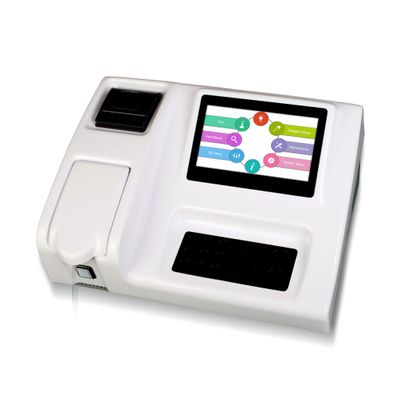

East-Medical - Model EM88A -Semi Automated Chemistry Coagulation Analyzer
4 benefits at the cost of 1:Clinical Chemistry, Turbidimetry,Coagulation & Multi Purpose Incubator. Convenient Selectable Reading mode for all 3 Analysis: Flow cell, Cuvette & Tube. Easy& Fast operation through:Touch Screen,Mouse, Keyboard & Barcode Reader. Accurate & Precise results with long life 8 IAD Filters (340nm-670nm). Better Visibility & operation through 7.0′ True Colour Touch screen Display. Air purge between sample to avoid carry ver/Lamp saver mode.
Most popular related searches
silicon photodiode detector
flow cell
peristaltic pump
coagulant
coagulation
digital temperature controller
coagulant analyzer
automatic chemistry analyzer
cuvette
photometric
- OPTICAL UNIT
- MEMORY INPUT
- 8 IAD Interference Filters:
- 300 User Defined Test Program
- 340, 405, 450, 505, 546, 578,630 & 670 nm
- 200000 Sample Results
- Silicon Photodiode Detector
- Reagent Blank & QC Result
- Photometric Range:0 to 3 OD
- SOFTWARE FEATURES
- Resolution:0.0001A
- Multi Level QC with Levy-Jenning Graphs &
- Light Source:Halogen Lamp
- Cumulative Info
- MEASURING UNIT
- Alpha Numeric Patient ID & Name
- Triple Cuvette Analysis
- Result Recall by Date,Name &ID
- 18ul Quartz Flow cell
- Online Graph & change in OD display
- 10mm Square Cuvette
- 6mm Round Tube with Adaptor
- Option to operate instrument through PC software
- Peltier Temperature control: 25°C,30°C,37°C &RT
- DISPLAY
- Minimum Aspiration Volume 200ul by mean of
- True Colour 7.0’Inch Touch Screen Display
- Peristaltic Pump
- 26 Position Multipurpose Inbuilt Incubator 37C
- INPUT/OUTPUT INTERFACE
- Touch Screen with Popup Keyboard
- ANALYSIS METHODS
- Inbuilt High resolution Graphic Thermal Printer
- Endpoint with Reagent blank
- Two Point End
- 4 USB,Slave USB & Ethernet Port to Interface
- Key Board,Mouse, Barcode reader &
- Kinetic
- Printer.
- Fixed Time (Two Point)
- Turbidimetry
- OPERATING ENVIRONMENT
- Coagulation
- Store Temperature 15°C-45°C
- ANALYSIS MODES
- Working Temperature 15?-30?
- Bi-Chromatic Filter selection
- Humidity 35%-90%,Non Condensing
- Linear and Non-Liner Calibration Mode
- POWER
- 1 Pt.Linear
- Logit-Log 3P
- 2 Pt.Linear
- Logit-Log 4P
- External Universal SMPS adapter
- Multipoint Linear
- Logit-Log 5P
- 19V DC/90Watt,90-264V AC-50/60 Hz
- Line Graph
- Exponential
- Spline
- Parabola
- DIMENSION(mm)& WEIGHT
- 400(L)X 300(W) X 191(H) (L-W-H)
- 7Kg
- Optical Unit:
- 8 IAD lnterference Filtes: 340, 405, 450, 505, 546, 578, 630 & 670 nm
- Silicon Photodiode Detector
- Photometric Range: 0 to 3 OD
- Resolution: 0.0001 A
- Light Sou?ce: Halogen Lamp
- Measuring Unit
- Triple Cuvette Analysis
- l 8ul Quartz Flow cell
- 10mm Square Cuvette
- 6mm Round Tube with Adaptor
- Peltie? Temperature cont?ol: 25°C, 30°C, 37°C & RT
- Minimum Aspiration Volume 200ul by mean of Peristaltic Pump
- 26 Position Multipurpose Inbuilt lncubator 37°C
