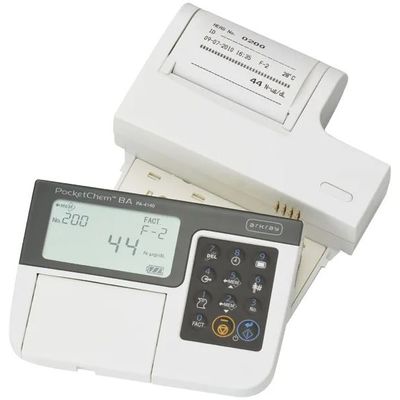

Eastwings - Model PocketChem BA PA-4140 -Blood Ammonia Meter

• Needs 20 µl of whole blood
• Only 124 (W) x 85 (D) x 38 (H) mm, and 150 g weight
• 2 x AA-sized dry battery for mobility and / or AC adapter

Sample: Whole blood
Test strip: AMMONIA TEST KIT II
Measurement item: Blood ammonia concentration
Measurement range: 10 to 400 N – μg / dL
Measurement principle: Test strip, Single wavelength reflectance method
Measurement wavelength: Single wavelength LED (635 nm)
Sample supply method: Dropping with pipette
Reaction time: Approx. 3 minutes and 20 seconds per test
Warm-up time: Max.10 seconds
Measurement types: Normal measurement, continuous measurement and check measurement
Display: LCD
Memory capacity: Test results for 50 samples
External output: RS-232 C compliant
Thermal compensation: Automatic compensation using a built-in temperature sensor
Operating environment: Temperature: 10-35 °C ; Humidity : 25 – 85 % RH
Dimensions: Instrument : 124 (W) × 85 (D) × 38 (H) mm
Weight: Approx. 150 g (not including batteries)
Power supply: Instrument: Two AA batteries or AC adapter 7.5 VDC 3A
Power consumption: Battery power : 0.15 W (AC power : 4 W)

Printer: Thermal line printer
Printer paper: High color development thermal paper (W 58 mm × 26 mm)
Dimensions: 125 (W) × 133 (D) × 36 (H) mm
Weight: 180 g (not including printer paper)
Power supply: AC adapter 7.5 VDC 3A
Power consumption: 20 W
