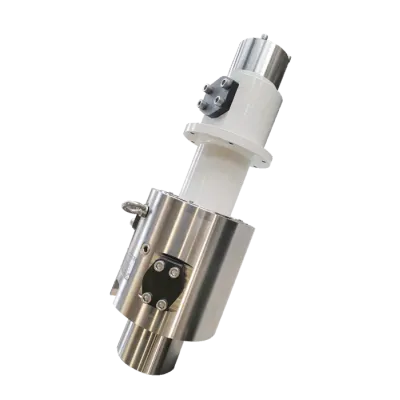

Easysound - Hydraulic Slip Ring
Since 2019, we have successively developed hydraulic slip ring projects for Jinfeng technology, Mingyang wisdom and other main engine plants. The product functions fully meet the requirements of customers and replace imported similar products. From 2019 to now, the products have been running well and have been highly praised by customers
Most popular related searches
Hydraulic lubrication slip ring
low pressure
ample flow
Supply lubricating oil to Gearbox
Hydraulic pitch slip ring
high pressure
small flow
supply oil to the pitch cylinder
PRESSURE & FLOW
- High pressure, max. hydraulic pressure 30MPa；
- High pressure, maximum hydraulic pressure 30MPa, large flow, maximum transmission of single slip ring 390l / min；
- Multi channel to realize multi-channel transmission of single slip ring；
ANTICORROSIVE
- High anti-corrosion, up to C5H anti-corrosion requirements；
- Low leakage to ensure high efficiency of product use；
- Non contact to ensure long service life of products
TEMPERATURE
- Extreme temperature resistance, - 50 ℃ to 80 ℃ can work normally；
- High precision, all parts are tested with Coordinate Measuring Machine；
- Low torque, 6N * m starting torque reduces the friction burden of the stop rod；
ADAPTATION
- Low pressure loss, optimizing runner design；
- High adaptability of electric slip ring；
- HD cleanliness.
