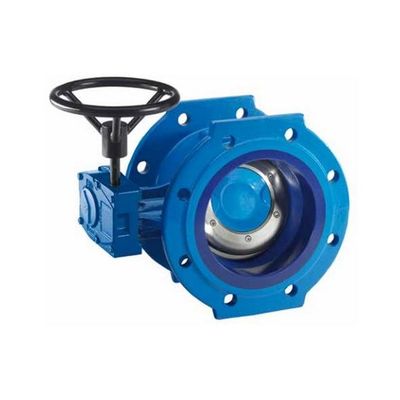

Wey - Model TZ 01-4 -Eccentric Butterfly Valve

Body: Ductile Iron EN-GJS-400-15. Disc: Ductile Iron EN-GJS-400-15. Corrosion protection: Body inside with enamel finish and outside with a cermet and top coat RAL 5015.. Shaft: 1.4057. Bearing: 2.1090. Seal: EPDM. Actuation: Handwheel/Worm Gear. Nominal pressure: 10/16 bar. Flange drilling EN 1092 / ISO 7005. Face-to-face EN 558 / ISO 5752 part 14. Actuating flange: acc. to ISO 5211. Test acc. EN 12266-1, rate A.Size DN 200 and larger include flange footing.
