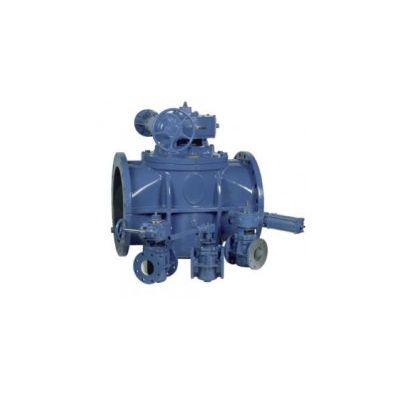

Dezurik - Eccentric Plug Valves (Pec)
DeZURIK Eccentric Plug Valves` design features include eccentric action and resilient plug facings assure lasting dead-tight shutoff. Clean interior design and straight-through flow allow high maximum flow capacity with minimum pressure drop. Heavy-duty stainless steel bearings, choice of resilient plug facings, welded-in, corrosion-resistant nickel seat and variety of end styles are available. Ecccentric Plug Valves are capable of handling clean and dirty liquids and gases, sludges and slurries.
Most popular related searches
Eccentric Plug Valves (PEC) Specifications
- Size Range: .5 - 72" (15 - 1800mm)
- Temperature Range: to 300°F (150°C)
- Pressure Rating: 125 - 450 psi (860 - 3100 kPa) CWP Shutoff pressure to 275 psi (1980 kPa)
- Shutoff Class: Resilient plug facing: drip tight to rating up to 275 psi (1890 kPa)
- Body Material: Cast iron, bronze, aluminum, carbon steel, stainless steel, Alloy 20, monel and ductile iron
