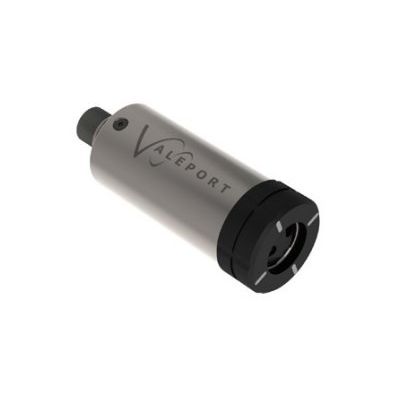

Valeport - Model UltraP -Echosounders and Bathymetry Instruments
Ultra-fast, ultra-compact, ultra-dependable. The next generation of Pressure sensor. Redesigned from the connector up, the ultraP offers a truly smart and exchangeable Pressure sensor without compromise. Ideally suited to system integrators and OEM applications, the ultraP is a truly exchangeable Pressure sensor with all critical electronics contained within the housing. Select the depth rating that suits your operational depth to maintain the best possible accuracy.
The pressure sensor fitted to the ultraP is a temperature compensated piezo-resistive sensor, which delivers the performance previously only available from a resonant quartz sensor at a more cost-effective price.
It also brings the added advantages of long term stability, allowing longer intervals between calibration, and a smaller and more robust construction; complex and vulnerable arrangements of diaphragms and oil filled capillaries & reservoirs are therefore no longer necessary.
The ultraP can be re-calibrated by customers using a Class A deadweight tester.
Performance
- Range: 10, 30, 50, 100, 300, 400 or 600 Bar
- Accuracy: ±0.01% FS
- Resolution: 0.001% FS
Data Acquisition
- Sampling: Continuous or data on demand. Noise reduction mode
- Data Rate: 1, 2, 4, 8 or 16Hz continuous
- Units: Secondary calibration function allows conversion of dBar
- pressure units into metres or feet
- Tare: Tare Function allows correction for atmospheric offset
Physical
- Housing: Titanium (6000m rated)
- Size: 40mmØ x 84mm
- Weight:
- Connector: Subconn MCBH6F (titanium)
Communications
- Output: RS485
- Protocol: 4800 to 115200 baud, (8,1,N)
- Format: Proprietary NMEA data string
Power Requirements
- Input: 5vDC (isolated)
- Power: less than 0.4W (40mA @ 5v dc)
