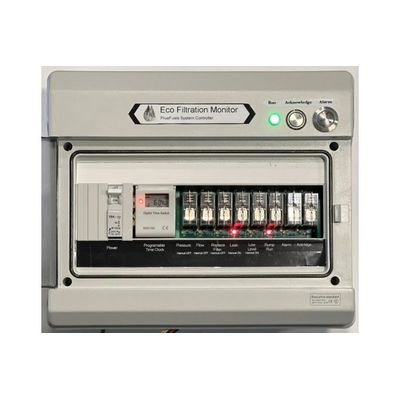

Lakeside Petroleum - Model PureFuels EFM -Eco Filtration Monitor / Controller
PureFuels Eco Filtration Monitor (EFM) is a compact controller designed specifically for fuel polishing systems. Also the EFM has 16 programmable set points. With each set-point, it can be programmed for either one or up to seven days a week. The EFM monitors the main storage tank for a low level condition, the containment leak sensor, The filter differential ” filter needs replacing” and optional flow and pressure sensors. And It’s a nice low compact economical unit with the power of the expensive large controllers.
Most popular related searches
leak sensor
leak monitoring
polishing system
pressure sensor
low flow pump
container monitor
filter cleaning
tank leak monitoring
tank level monitoring
level monitoring
- provides 16 seven day timers
- has automatic and manual modes to run the pump
- can operate on one of the following power sources:
- 12dc
- 24dc
- 115vac
- 208vac
- 230vac
- monitors, alarms and stops the pump when:
- tank low level
- containment leak
- monitor and alarms only when:
- the filter needs cleaning
- water in the filter (optional)
- pressure or vacuum is to high (optional)
- low flow (optional)
- operate pumps up to 16amps
- dry output alarm for remote alarm
- waterproof enclosure
- compact design 11 x 9.5 x 4.75 inches
- can operate off of external battery power only for 12 or 24 VDC systems
