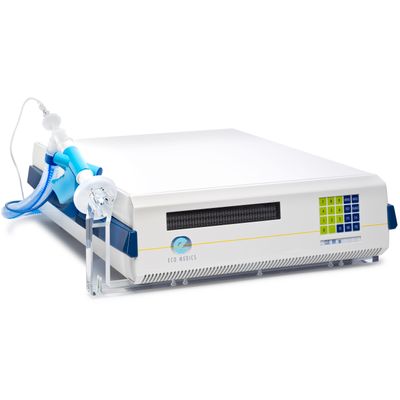

ECO MEDICS - Model CLD 88 sp -Analyzer for FeNO Testing
The ANALYZER CLD 88 sp serves as a reference instrument for FeNO testing suitable for patients ranging from newborns to adults. It features continuous, simultaneous measurement and display of nitric oxide (NO) values, flow rate, and volume of exhaled breath. This instrument is sensitive enough to detect NO concentrations as low as 0.1 ppb, ensuring reliable results across its diverse applications in clinical and research settings. The device is CE MDD approved for clinical use and aligns with the 2005 ATS/ERS recommendations for FeNO analysis. It accommodates both single and multiple breath tests, allowing for testing of cooperative and non-cooperative patients. This versatility extends to testing nasal and alveolar NO levels, with options for both online and offline measurements. The system includes dedicated software, SPIROWARE, to control the device with simplicity while customizing user display and data evaluation. The integration with DENOX 88 module and offline NO collection kit further expands its application range.
The ANALYZER CLD 88 sp FeNO analyzer is the reference for continuous, simultaneous measurement and display of NO values, flow rate and volume of the exhaled breath. This sensitive instrument guarantees reproducible and reliable results. It is approved in accordance to CE MDD for clinical use and fully compliant to the 2005 ATS/ERS recommendations for FeNO analysis. One instrument for all applications, from infants (>3 kg) to adults.
High sensitivity and reproducibility
The ANALYZER CLD 88 sp offers high sensitivity and speed as demanded in clinical and research applications. NO concentrations down to 0.1 ppb can be detected.
Numerous application options in one system
The ANALYZER CLD 88 sp can be used for FeNO testing on infants (>3 kg), children and adults. Single breath tests for cooperative patients as well as multiple breath tests for non-cooperative patients are possible. The instrument can also measure nasal and alveolar NO. Tests can be carried out online or offline.
Options for extended application range
Several options are available for the ANALYZER CLD 88 sp. The DENOX 88 module supplies NO free air and controls the expiratory flow during the single breath test. An offline NO collection kit is available for tests remote from the instrument.
Easy to use
Performing an NO measurement is very simple with the ANALYZER CLD 88 sp. The instrument is controlled by the SPIROWARE® software, which let’s the user start, record and evaluate a measurement with a few mouse clicks only. All key parameters and graphs are displayed in the results section and the screen can be customized for individual preferences.
- Single breath tests for cooperative patients
- Multiple breath tests for non-cooperative patients
- Nasal nitric oxide measurements
- Offline NO collection kit
- Alveolar FeNO analysis
- Noninvasive detection of lung inflammation (e.g. asthma)
- Verification of anti-inflammatory treatment
- Detection of non-responders
- Various flow ranges for research applications (JNO, Calv calculations)
- PCD screening
- CE MDD 93/42 approved for clinical use
- Compliance with the “ATS/ERS Recommendations for Standardized Procedures for the Online and Offline Measurement of Exhaled Lower Respiratory Nitric Oxide and Nasal Nitric Oxide, 2005”
- NO-measurement
Measuring ranges: 0.1-5000 ppb
Min. detectable concentration: 0.06 ppb *
Zero drift: <0.5 ppb per 6 h
Linearity: ± 1% full scale
Lag time: < 0.5 s, software compensated
Rise time (T90): < 100 ms
Sample flow: selectable type 1 or 3 (110 or 330 ml/min) - Flow measurement
Measuring range:
±0.5 l/s (DSR small: VD 1.9 ml, optional)
±1.5 l/s (DSR medium: VD 7.2 ml)
±16 l/s (Spirette)
Min. detectable flow: 0.6 ml
Accuracy: ±2% - General
Temperature range: 10-40 °C
Humidity tolerance: 5-95% rel. humidity (non-condensing)
Ozone Generator: internal, maintenance free (no external supply gas required)
Power consumption: 400 VA
Supply voltage: 100-240 V / 50-60 Hz
Interface: RS-232 (Standard)
Weight: 24 kg
Dimensions: HxWxD: 135 x 500 x 540 mm (5¼ x 19 x 17 “) - System requirements
Intel Core i5 type processor or higher, compliant to the Council Directive 93/42 EEC concerning medical devic-es and the European Safety Standard EN 60601-1 (e.g. ViewMedic Clinico 222C3, Rein Medical GmbH, 47877 Willich, Germany), Microsoft Windows WIN 7 or higher and .NET Framework 4.0 and MS Visual C++ 2010
16 MB of RAM, 10GB of free disk space, XGA or better graphics and USB 2.0 port
