Eco Tech - Model Type WDS-2 -Vibration Calibrator
FromEco-Tech

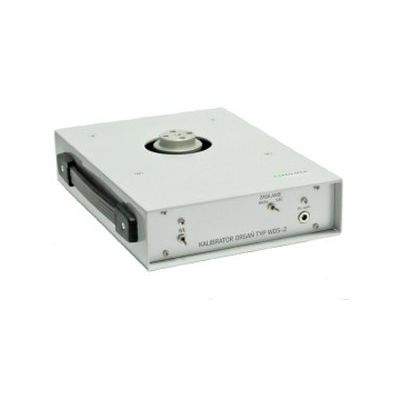

Vibration Calibrator Type WDS-2 is designed for calibration of vibration meters equipped with whole body vibration transducers (seat pads). The instrument generates sinusoidal vibration of nominal acceleration 1 m/s² RMS at frequency 16 Hz. The Type WDS-2 enables calibration of triaxial whole body transducers in 3 axes without removing its rubber cover. The calibrator fulfills requirements of ISO 8041-1:2017.
Most popular related searches
portable vibration calibrator
human vibration
human vibration monitoring
vibration meter
vibration monitoring
vibration instrument
- Vibration Calibrator Type WDS-2 is intended for calibration of vibration meters equipped with whole body vibration transducers according to ISO 8041-1:2017.
- The Type WDS-2 generates sinusoidal vibration of nominal acceleration 1 m/s2 RMS at frequency 16 Hz.
- The calibrator is powered from internal battery.
- The Calibrator WDS-2 enables calibration of triaxial whole body transducers in 3 axes without removing its rubber cover.
- disk with rubber orings for attaching whole body transducer
- cantilever for calibration whole body transducer in axes X and Y
- battery charger
- level
- screwdriver
- warranty card
- user manual
- declaration of conformity
- transporting case.
