Ecoflex
A compact, reliable, and effective system! Ecoflex is the ideal solution for small spaces and sensitive areas. It is an ultra-compact system designed to remove nitrogen from wastewater. It can be combined with a UV disinfection system for the treatment of bacteria and other pathogens, resulting in further health and environmental protection.
Most popular related searches
nitrogen removal
wastewater nitrogen
ultraviolet disinfection system
total nitrogen removal
wastewater treatment system
textile filter
septic tank
dosing tank
compaction system
ultraviolet disinfection
- Compact, modular technology
- Excellent nitrogen removal capability
- Easy to operate and maintain
- Low energy use
- Quick start-up time, adapted to intermittent or seasonal use
- Modular system
- Can be installed indoors or outdoors
Ecoflex is a composite filter made of an organic alternance of land and synthetic layers that are rolled around a 2` (50 mm) diameter tube to form a filtering media roll. This hghly permeable material treats a tremendous amount of wastewater in a very small footprint. With Ecoflex, there is no odor or noise. Each filtering media roll is either inserted individually in a watertight polyethylene tank or installed in cluster in a prefabricated concrete of fibreglass tank.
- More contact surface for better treatment
- Even performance despite peak flows, wastewater quality and temperature variation
- Ideal for seasonal applications (short start-up period)
- Minimum footprint required
- Low energy and maintenance costs
- Cost-effective solution for applications between 500 and 6,500 US gal/d (2.5 to 25 m3/d)
- Office building
- Inn and Hotel
- Restaurant
- Resort
- Golf course
- Spa
- Retirement home
- Campground
- Shopping mall
- Rest area
- Truck stop
- Nursing home
- School
- Forest camp
- Single dwelling where denitrification is required
- Small municipality and subdivision
- Suburban residential new development
- Trailer park
- Nitrogen removal (nitrification/denitrification)
- Easy to install, operate and maintain
- Short start-up period
- Modular system
- Ideal system for difficult site conditions
- Indoor or outdoor installation
Premier Tech Environnement is the PREFERrED PARTNER for all wastewater treatment solutions
For more than 20 years, Premier Tech Environnement has multiplied its efforts in research and development to design new treatment systems adapted to today’s reality. Limited space and environmental concerns are only two of the factors that pushed the IR&D team to develop the EcoflexTM ultra compact advanced secondary treatment systems that can achieve total nitrogen removal.
This approach is based on a packed-bed textile filter named Ecoflex, well-adapted for single-family homes, commercial properties and small community projects with domestic wastewater and a daily flow smaller than 6,500 gpd (25 m3/d).

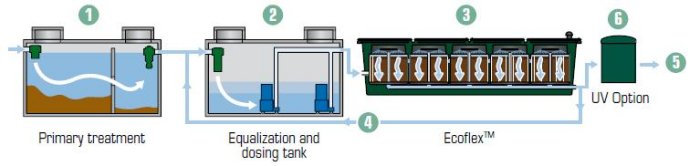

- Primary treatment usually consisting of a septic tank equipped with a commercial effluent filter and providing a minimal hydraulic retention time (HRT) of 36 hours at mean daily flow. A grease trap must also be used upstream of the septic tank for some commercial projects (ex.: restaurants).
- Equalization and dosing tank providing 12-hour HRT for commercial/institutional applications and 8.5-hour HRT for community applications. For the Ecoflex operating in a recirculation loop, the ammonia is first converted into nitrates inside the Ecoflex media. The nitrates are then recirculated in the equalization and dosing tank where, under anoxic conditions, they are transformed in gaseous nitrogen (denitrification).
- System combining two treatment processes: physical treatment by filtration and biological treatment by fixed bacteria. Ecoflex may be operated in a recirculation loop (multi-pass configuration) to achieve advanced secondary treatment level or may be operated in a single-pass configuration as a polishing unit after the Bioseg treatment system.
- Recirculation of a portion of the flow (usually, R = 2Q) to optimize nitrogen removal.
- Effluent final disposal towards a surface or a subsurface discharge1.
- Disinfection unit (UV) option.
