ECOM spol. s r.o.
ECOM spol. s r.o. - Model ECS03 -Isocratic Analytical System
High effective HPLC system containing UV-VIS detector, analytical pump and Box for mobile phase bottles. Detector with continuously variable wavelength 190-600 nm and very low noise level offers high-speed sampling up to 100 Hz.
Most popular related searches
UV-VIS detector
analysis system
HPLC system
analytical HPLC pump
analytical HPLC
UV-VIS
chromatography software
analytical pump
HPLC pump
HPLC analysis
Communication of all units is through RS232 or Ethernet(LAN). Additional PC A/D converter card is not required for this system.
System contains manual injector and Clarity software. All units are supported in Clarity software from installation.

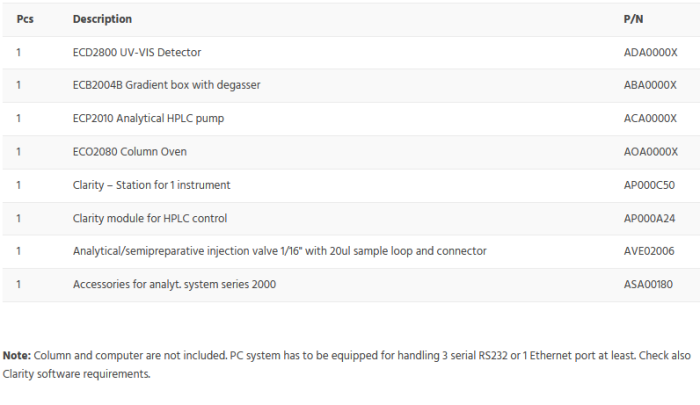

Main parts
ECD2600 UV-VIS DETECTOR
Detector with continuously variable wavelength in the range of 190-600 nm and a noise level ±3·10-6 AU. Unit offers high-speed sampling up to 100 Hz and wavelength autocalibration. AC 05 analytical cell is included.
ECP2010 ANALYTICAL HPLC PUMP
This isocratic pump works with Gradient Box ECB2004B as a quaternary gradient pump. Flow rate range is 0.01-10 ml/min and pressure limit at 40 MPa. Unit software includes new learning algorithm for pulsation suppression and many testing and diagnostic functions.
ECB2006 BOX FOR MOBILE PHASE BOTTLES
Box is suited for secure mobile phase bottles installation onto isocratic systems
CLARITY CHROMATOGRAPHY SOFTWARE
This system is fully controlled by Clarity Chromatography software, which is also a part of delivery. Clarity software complies CFR21GLP requirements.
