Scaletron - Model 2305 -Economical Digital Single Cylinder Scale

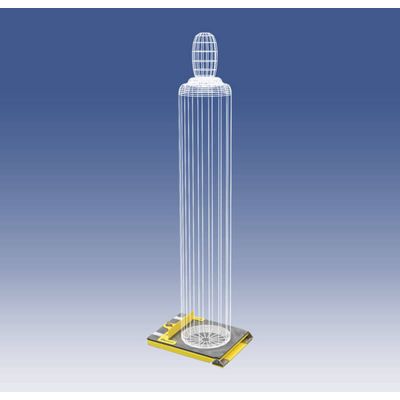

The Model 2305 Economical Digital Single Cylinder Scale is designed for weighing gas cylinders up to 12″ in diameter and offers a net capacity of up to 150 lbs. Featuring corrosion resistant construction and an economical single load cell design, the low-profile base and adjustable backstop allows for safe and easy handling and centering of cylinders. Indicators are available from 1 to 4 channels with 4-20 mA outputs and optional set point relays. MADE IN USA.
Most popular related searches
cylinder scale
multi-channel controller
load cell
gas cylinder storage
channel screen
SO2
chlorine dioxide
liquid chlorine dioxide
chlorination
acid protection
- Rugged steel construction protected by a corrosion resistant finish, with solid 1/8" PVC decking for use in harsh environments
- Low profile platform design increases safety and ease of cylinder handling
- Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
- Temperature compensated load cell
- Self-locking tare adjustment knob
- 4-20 mA output signal – scale or loop powered
- 12 ft. of 4 conductor wire cable
- Cylinder support with tool rack and chains
- AccuPro 1000 Digital Controller with one or 2 channels, 4 button keypad and optional 4-20 mA output signal – scale or loop powered
- AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
- AccuPro 6000 Digital Controller with one or 2 channels, touch screen and 4-20 mA output signal – scale powered
- AccuPro 7000 Digital Controller with up to 4 channels, touch screen and 4-20 mA output signal – scale powered
- High and low level set points
- 0-5V or 0-10V output signal
- Audible alarm
- Modbus communication
- Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 4 conductor wire cable
- Scale is designed to accurately measure weight of:
- Ammonia, carbon dioxide, hydrogen chloride, liquefied chlorine, sulfur dioxide and other liquid gases
- Designed for weighing cylinders up to 12” in diameter
- Base size: 12-5/8″x14-3/4″
- Net capacity: Up to 150 lbs. (68 or 70 kg)
- High accuracy of ±0.25% of capacity
- Single or multi-channel controllers with easy readability to 0.1 lb. (kg)
- Readout in pounds, kilograms, gallons or liters
