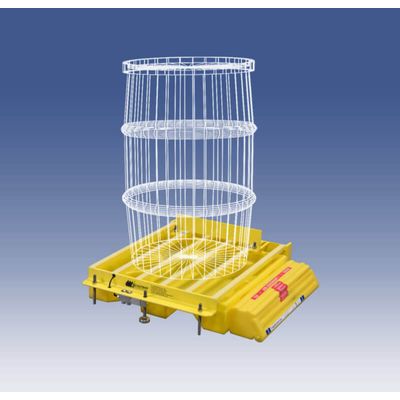

Scaletron - Model 4042ECO-WB-26 -Economical Spill Containment Drum Scale with Bladder
The Model 4042ECO-WB-26 Economical Spill Containment Drum Scale with Bladder is designed for weighing tanks and drums up to 26″ in diameter and offers a net capacity of up to 1,000 lbs. The containment basin and deployed bladder hold a total of 77 gallons. Featuring corrosion resistant construction and an economical single load cell design, the scale base is ideal for centered load, pump in/out applications and meets secondary spill containment requirements of government agencies. Indicators are available from 1 to 4 channels with 4-20 mA outputs and optional set point relays. MADE IN USA.
Most popular related searches
spill containment scale
spill containment
drum scale
container scale
load cell
spill containment basin
secondary spill containment
drum spill containment
epoxy coating
containment bladder
- Rugged steel construction protected by corrosion resistant, zinc oxide primed and dry powder epoxy coated finish, with polyethylene containment basin for use in harsh environments
- Designed for centered loads – includes heavy-duty steel backstop to help position the drum
- Expandable bladder automatically deploys in the event of a major spill
- Hinged base can be lifted for easy access and cleaning of the basin
- NTEP stainless steel shear beam, temperature compensated load cell with stainless steel leveling foot
- Load cell is mounted outside of spill containment basin to eliminate damage due to chemical spills
- All hardware is stainless steel to prevent corrosion
- Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
- 20 ft. of 4 conductor wire cable
- AccuPro 1000 Digital Controller with one or 2 channels, 4 button keypad and optional 4-20 mA output signal – scale or loop powered
- AccuPro 5000 Digital Controller with one or 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
- AccuPro 6000 Digital Controller with one or 2 channels, touch screen and 4-20 mA output signal – scale powered
- AccuPro 7000 Digital Controller with up to 4 channels, touch screen and 4-20 mA output signal – scale powered
- High and low level set points
- 0-5V or 0-10V output signal
- Audible alarm
- Modbus communication
- Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 4 conductor wire cable
- Scale is designed to accurately measure weight of alum, ammonia, caustic, fluoride, phosphate, polymers, sodium aluminate, sodium bisulfate, sodium hydroxide, sodium hypochlorite and other liquids or powders
