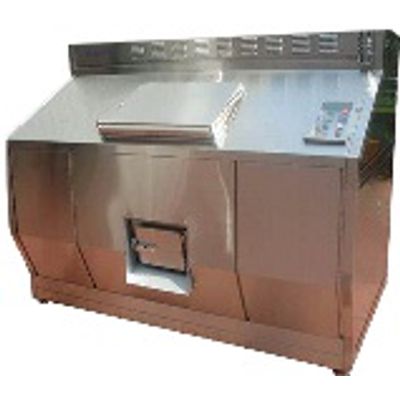

Ecovim - Model Eco 650 -Eco-System Food Waste Management Machines
1 Cycle per day: 650 Pounds a day, 15-18 hours Cycle, 63.0" x 49.6" x 60.2" Dimension. 220 V (4 wire) Three Phase.
Each unit is constructed of 304 grade stainless steel and the decomposition chamber uses heat and mechanical agitation. The chamber has an oil jacket with substantial insulation and well sealed inlet and outlet doors so as to minimize energy consumption. The system is equipped with an odor management device to control odors associated with the decomposition process. The utility requirements are an electrical source and a condensate line, no venting or fresh water connections are required.
The decomposing chamber is capable of producing 180° F during the processing to insure that the end product is essentially odor free.

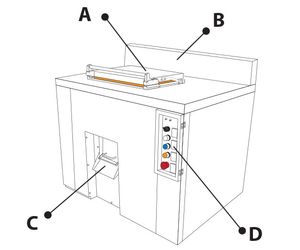

The end product can be used as a soil amendment suitable for use in landscaping. The system is capable of reducing compostable waste weight and volume by 83% to 93%. This will vary depending on the waste input.A. Input Door
Open and insert your organic waste from here. Depending on the machine capacity you can load from 66 pounds to 6600 pounds per cycle. We can also make custom size machines to fit your needs.
B. Electric Components
All electrical components are assembled here and covered.
C. Output
After each cycle the compost comes out from here. There is a guide to easily unload the compost.
D. Electrical Panel
Open and insert your organic waste from here. Depending on the machine capacity you can load from 66 pounds to 6600 pounds per cycle. We can also make custom size machines to fit your needs.
