Earthquake -Viper - Model 24000 - 79CC ...

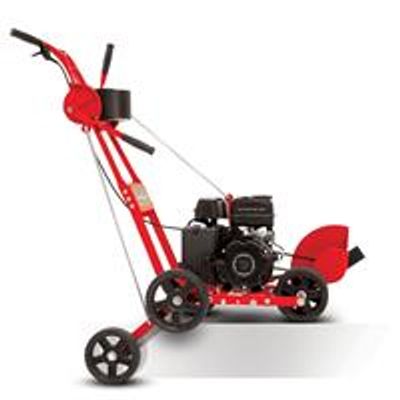

Earthquake -Viper - Model 24000 - 79CC 9 -Edger

SHARE

The Earthquake Edger with Curb Wheel features an adjustable cutting head and adjustable wheels.

Most popular related searches

EPA certification

Curb Wheel

Edge along a raised curb with the height-adjustable curb wheel attachment.

Powerful

79cc Viper® Engine with centrifugal clutch.

Chain Debris Guard

Protects operator from flying debris.

Pivoting Head

Allows for multiple edging and cutting angles.

ENGINE BRAND VIPER®
ENGINE TYPE 4-CYCLE
ENGINE TORQUE (FT-LB) 2.95 FT-LB @ 3600 RPM
FUEL TYPE 87+ OCTANE UNLEADED GASOLINE
STARTING SYSTEM RECOIL
CYLINDER CONFIGURATION HORIZONTAL
CYLINDER MATERIAL ALUMINUM
FLYWHEEL CAST ALUMINUM
FUEL CAPACITY (GAL) 0.53
DISPLACEMENT (CC) 79
FUEL TANK steel
TRANSLUCENT FUEL TANK no
THROTTLE CONTROL ON HANDLEBAR
COMPRESSION RELIEF VALVE NO
MUFFLER GUARD NO
ON/OFF SWITCH rotary on engine
RECOMMENDED OIL 10W-30
LOW OIL SHUTDOWN NO
SPARK PLUG e5tc
CERTIFICATIONS EPA III, CARB
DRIVE SYSTEM belt
ANSI B71.8-1996 YES
HANDLEBAR STYLE BICYCLE WITH form GRIPS
MULTIPLE HEIGHT POSITIONS 2
OPERATION TWO-HANDED
SELF PROPELLED NO
edging DEPTH (IN) 3.5
edger blade (material) SPRING STEEL
edger blade (RPM) 3400
WHEEL DIAMETER (IN) 7.5, 6.5
WHEEL WIDTH (IN) 2
WHEEL MATERIAL PLASTIC HUB / RUBBER TIRE
LABELING PICTOGRAM / EN
MODEL BRAND EARTHQUAKE®
EXCLUDED STATES None
ILLUSTRATED PARTS LIST MANUAL, ONLINE
MANUAL LANGUAGE ENGLISH
ASSEMBLED DIMENSIONS (IN) 38.7 X 19.3 X 37.7
PACKAGED DIMENSIONS (IN) 23.8 X 29.76 X 21.3
NET WEIGHT (LB) 61.25
GROSS WEIGHT (LB) 68
CARTON STYLE Stencil brown box
PALLET QTY 16
40’ HC CONTAINER QTY 465 UNITS
UPC CODE 012642 004322
WARRANTY 5-Year Limited
