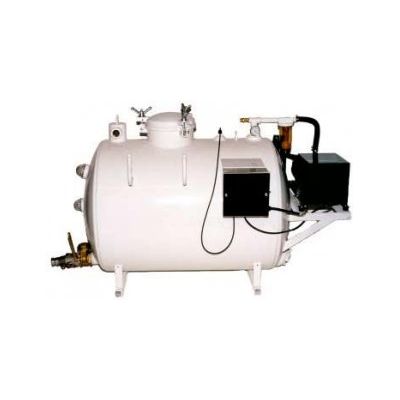

Edson - Model 290-235-7.5E - Central Vacuum System for Multiple Station Applications
From Pump Out Equipment
High volume vacuum for Multiple station operation. Simultaneous pumping from up to 3 stations. 235 gal. Galvanized steel tank. Dry start lift to 25'. Pump up to 50% solids. Push button start/stop at Each station. Easy to use, low Maintenance operation.. All materials specified for The marine environment.
Performance:
Performance:
- Max Volume: 100 GPM / 379 LPM
- Installation Volume: As Required
- Dry Suction Lift: to 25 ft / 7.6m
- Discharge Head: to 23 ft / 7 m
Features:
- Vacuum Power: 70 CFM, Oil Protected Rotary Vane Air Pump
- Powerful TEFC Motors: 7.5 HP, 230/440V 3ph Standard
- Long Lasting Transfer Cell: 235 gal. Steel Tank
- Water Tight Control Panel: Lockable Fiberglass 4X Enclosure
- Flexible, Durable Hose: Standard Is 25 ft. Any Length Is Optional
- Automatic Tank Discharge Cycle: Level Control Package
- Safe Start/Stop: 24 Volt Circuit w/ Timed Shut Off
Options:
- Constant Vacuum Control Panel
- Heavy Duty Bronze Hydrants
- Smaller or Larger Tanks from 35 to 600 Gallon Capacity
- 25 ft. or 50 ft. Pump Out Hose Assembly
- Motors with Different Voltage
- Galvanized Tank Inside & Out
An ideal pumping system when you need high volume suction at more than one station simultaneously. By driving the # 06, 70 cfm air pump with a 7.5 hp motor, enough negative air pressure is generated by this vacuum system to operate three 1.5” ID liquid suction stations at the same time. It also provides the capacity to depressurize thousands of feet of plumbing in seconds.
Suction sites can be equipped with remote start and stop switches and the main control panel has a timer that can be set to shut off the unit automatically in case an operator forgets.
Edson offers the same pumping equipment with larger or smaller tanks to meet different space and volume requirements. The 290-235-06E7.5 come complete with a control panel that can be programed to automatically off-load a full collection tank to a secondary containment tank or to a sewer line.
The combination of unique features designed into this vacuum pumping equipment make it ideal for a marina pump out system, waste liquid reclamation and collection site or even a factory central waste oil collection system.
Edson Vacuum Pumping Systems
Vacuum Pump Unit:
- Volume -100 GPM /152 LPM
- Suction Lift - to 25 ft / 7.6m
- Discharge Head - to 23 ft / 7m
- Galvanized 235 Gallon Steel Transfer Tank
- Automatic Reversing From Vacuum to Pressure
- Stainless Steel Hardware
- Inlet -1 1/2' NPT
- Discharge - 2' NPT
- Air Pump -# 06, 70 CFM, Rotary Vane, Oil Protected
- Standard Electric - 7.5 HP, 3 Phase, 230/460 Volt, 60 HZ, TEFC Motor with a Control Panel with Timer and 24 Volt Remote Stop/Start Capability.
Pump Station Hydrant:
- Marine Bronze Ball Valve, Check Valve &
- Elbow
- Heavy Duty, Marine Bronze Mounting Flange
- All 1 1/2' NPT
Pump Hose Assemblies:
- 1 1/2' Polyflex Hose* 90° Ball Valve
- Sight Glass/Check Valve
- Quick Clamp Adapter
- Complete Set of Deck Adapters
- 25 ft Length Standard
- 50ft Optional
Hose Stand Construction:
- White Powder Coated Aluminum
- Start/Stop Buttons Installed
- Remote NEMA 4 Start/Stop Control Box Optional
- Stainless Steel Optional
